HYOT 2200-8-2 RD (Ø 2200 mm)

Categories: , Brand:
Article number: T.98.01194

The HYOT 2200 mm – 8 – 2 RD is a twin lock medical-grade hyperbaric oxygen therapy chamber engineered for optimal safety, comfort, and performance. Featuring a 2200 mm diameter pressure vessel, it accommodates 8 patients in the main chamber and 2 in the entrance lock. The system complies with applicable pressure vessel and safety standards and is fully prepared with BIBS connection points and infrastructure for medical systems. Medical equipment and integrated systems can be configured optionally to meet specific operational requirements.

In need of a user manual? Please download the request form.

Aantal
Add to Quote
<br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br />

Questions?

If you have any questions let us know

+31 (0)85 79 24 300 sales@hytech-pommec.com

Product description

HYOT 2200mm – 8 – 2 HBOT Chamber

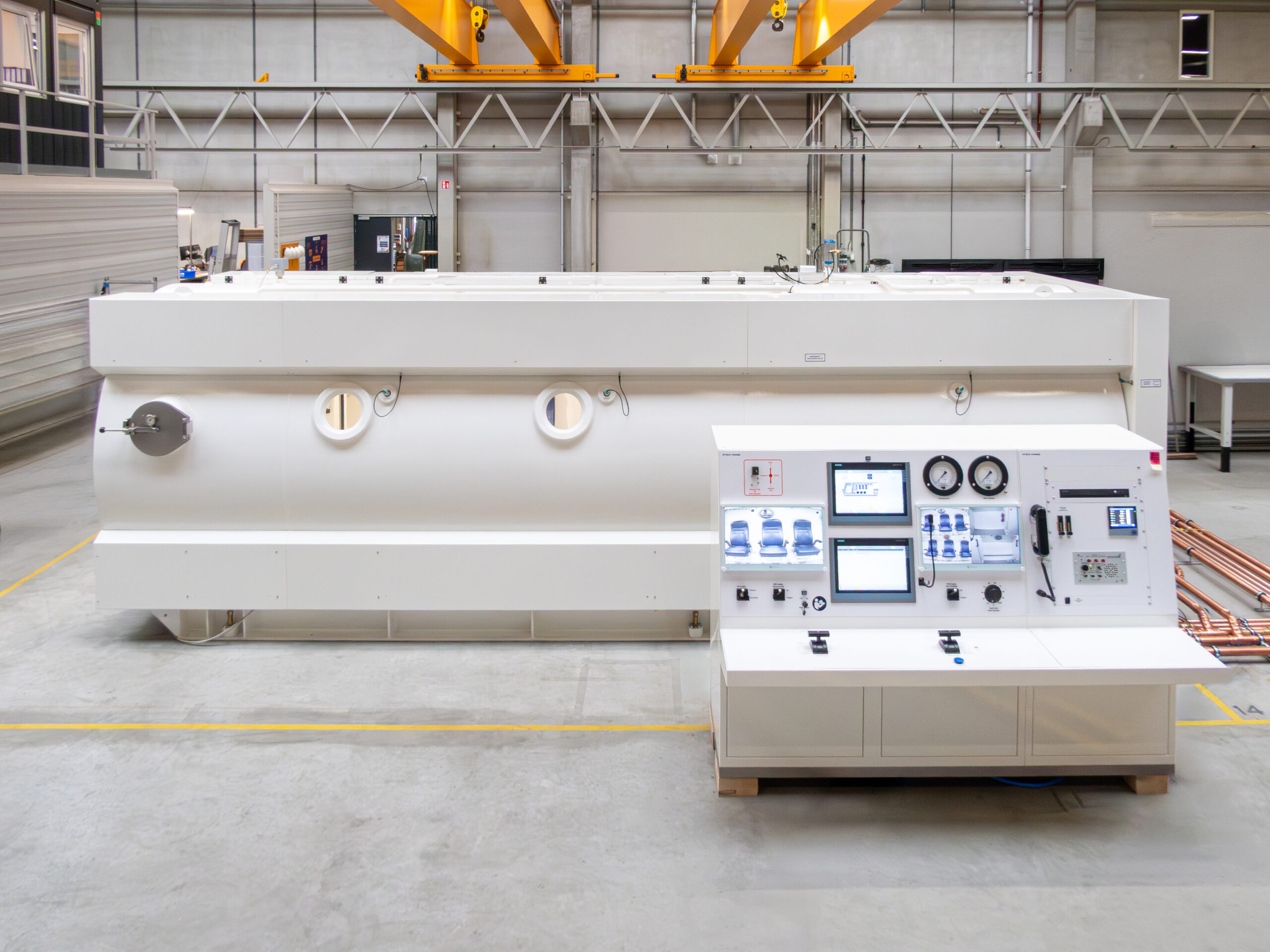

The HYOT 2200mm – 8 – 2 is a twin lock medical-class hyperbaric oxygen therapy chamber designed for clinical and hospital environments. Its 2200 mm diameter pressure vessel provides a spacious treatment environment while supporting reliable and efficient operation. 2700 mm diameter is also possible.

High-Capacity Clinical Configuration

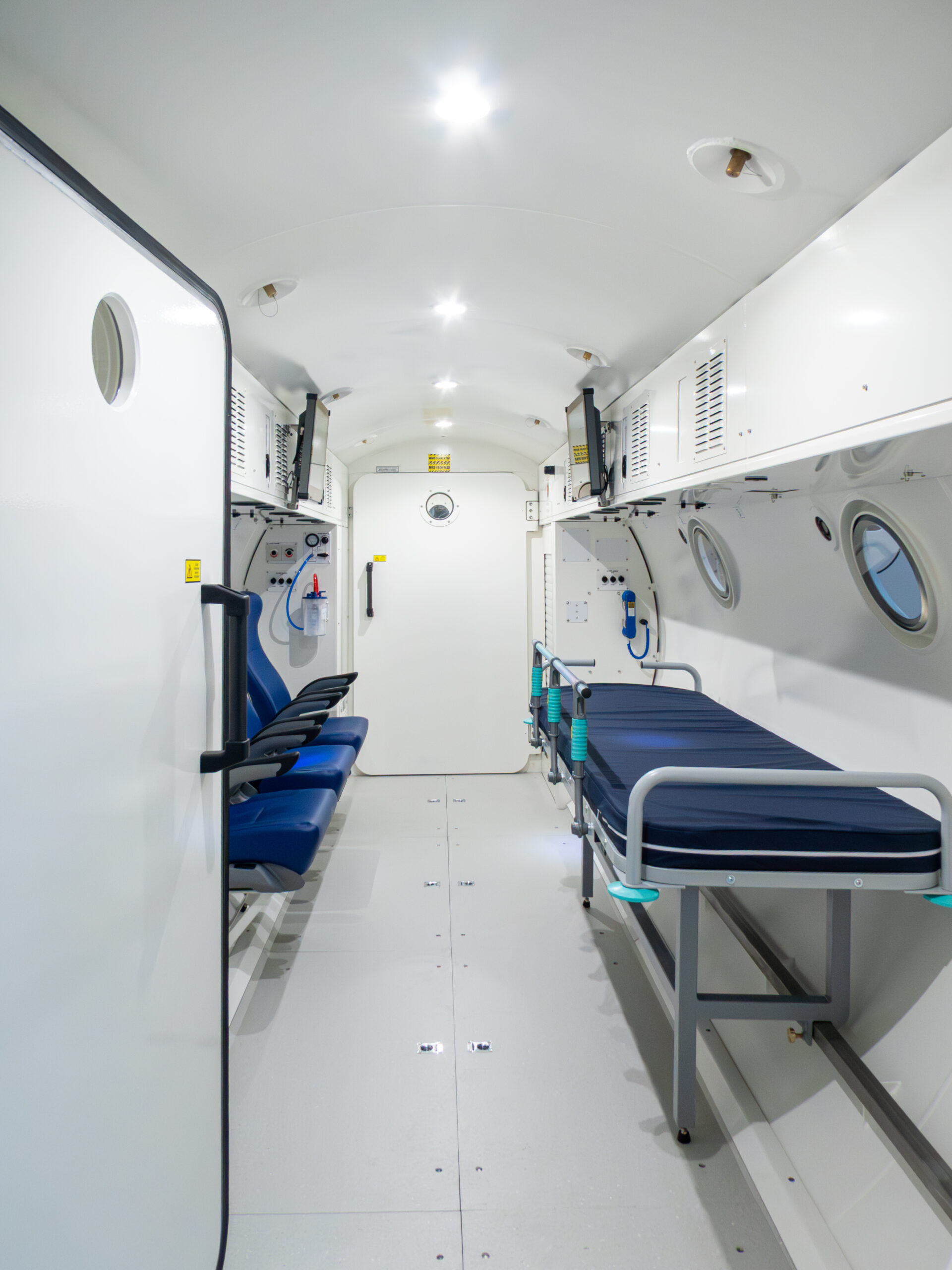

The main treatment compartment accommodates up to 8 patients, while the separate 2-seat entrance lock allows controlled patient transfer without interrupting ongoing treatments. Rectangular doors improve accessibility and support practical patient movement.

Integrated Treatment and Safety Systems

The chamber includes BIBS connections for oxygen delivery and incorporates systems for pressurization, monitoring, communication and emergency response.

Its construction supports long-term durability, reliability and regulatory compliance, making the HYOT 2200mm – 8 – 2 suitable for healthcare facilities requiring a high-capacity HBOT solution.

Specifications

Model HYOT 2200-8-2 RD (Ø 2200 mm) twin lock
Pressure Vessel Diameter 2200 mm (also 2700 mm possible)
Main Chamber Capacity 8 seated patients (also possible 4-12-16-20, seats can be taken in and out)
Entrance Lock Capacity 2 seated patients
Chamber Type Multiplace Hyperbaric Oxygen Therapy (HBOT) Chamber
Certification Application for MDR certification ongoing with EU notified Body, Kiwa Assurance B.V.
Compliance Meets all applicable European pressure vessel directives and safety standards
Operating Pressure Typically up to 2.5–6.0 ATA (customizable upon request)
Breathing System Integrated BIBS (Built-In Breathing System)
Control System Automated and manual control options
Monitoring Continuous internal and external pressure monitoring
Communication System Internal patient-to-operator communication system
Safety Systems Pressure relief valves, emergency depressurization system, fire safety systems
Access Entry lock for safe transfer during operation. The chamber incorporates rectangular door designs to facilitate improved accessibility.

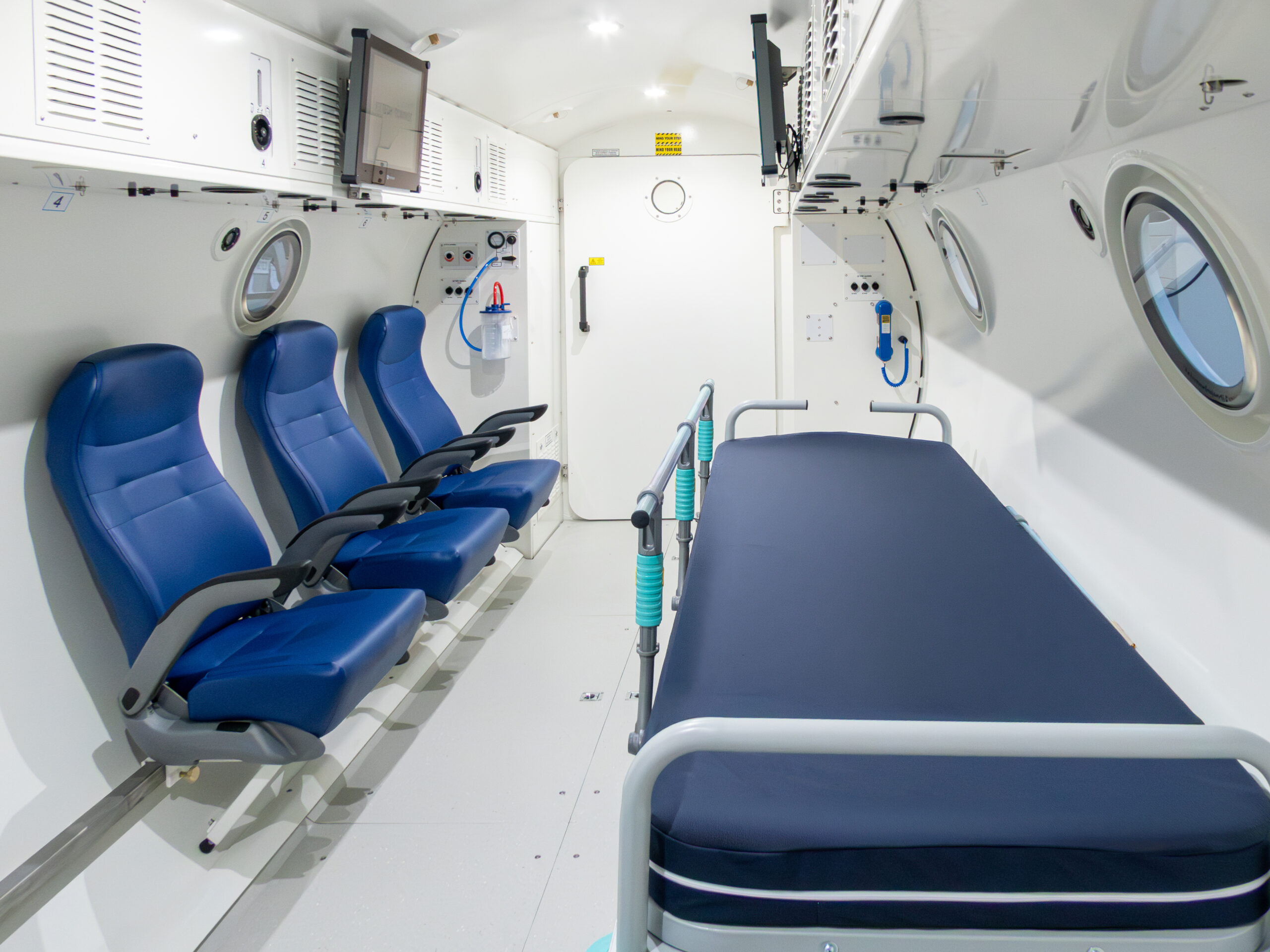

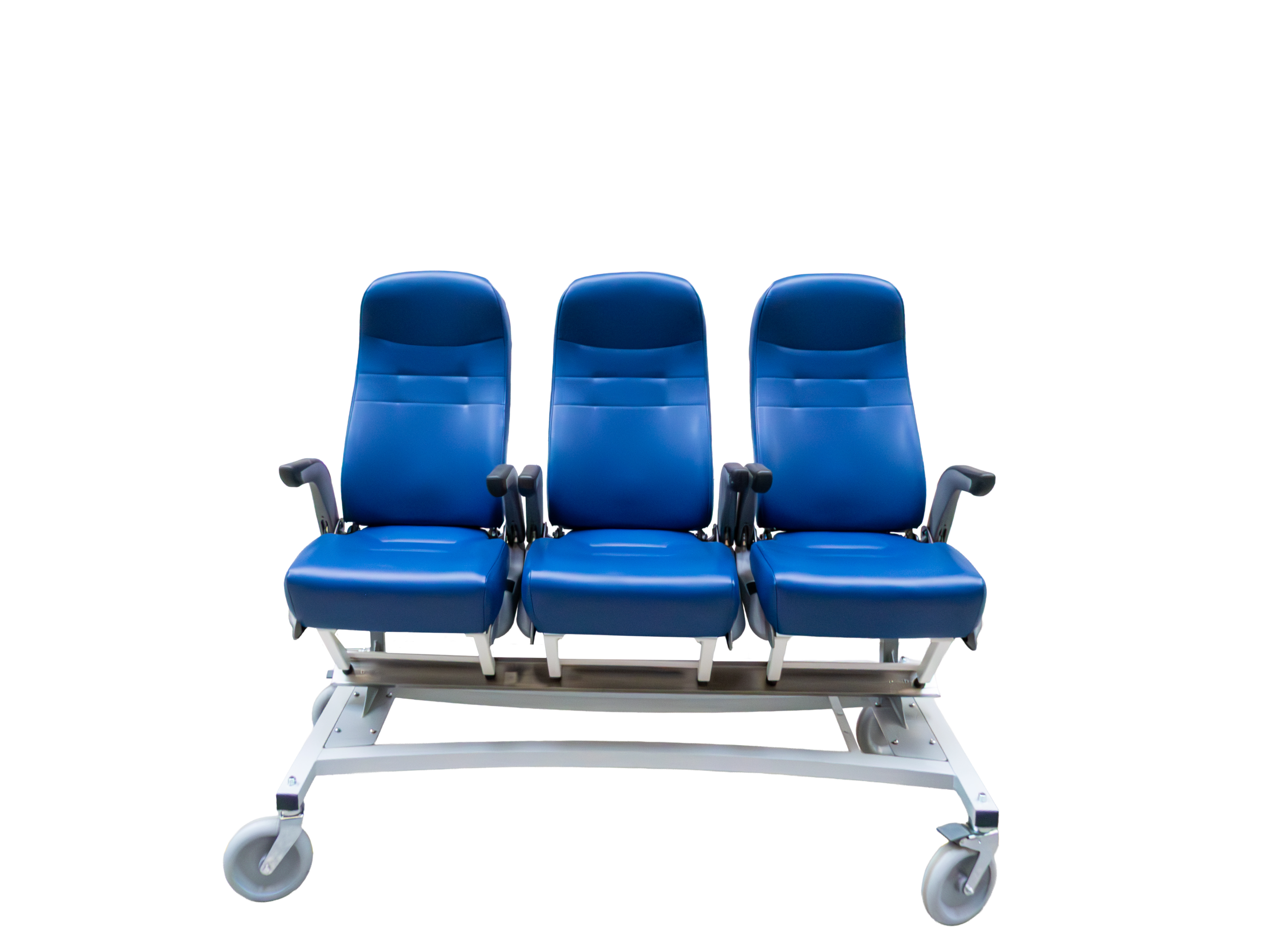

Seating Configuration Ergonomic, medical-grade seating
Viewing Ports Multiple acrylic view ports for visibility and patient comfort
Lighting Internal LED lighting system
Materials High-grade steel pressure vessel with medical-grade interior finishing

Features

  • High Patient Capacity
    Accommodates up to 8 patients in the main chamber, making it ideal for clinics with high patient throughput.
  • Dual-Lock System for Continuous Operation
    The 2-person entrance lock allows patient transfer without interrupting ongoing treatments, increasing operational efficiency.
  • Advanced Safety Design
    Engineered to meet all European pressure vessel and safety requirements, with multiple redundant safety systems.
  • Integrated BIBS System
    Equipped with Built-In Breathing System connections to ensure safe and controlled oxygen delivery during therapy.
  • User-Friendly Operation
    Intuitive control systems with both automated and manual operation modes for flexibility and ease of use.
  • Enhanced Patient Comfort
    Spacious 2200mm diameter chamber, ergonomic seating, lighting, and viewing ports create a comfortable treatment environment.
  • Reliable Communication Systems
    Continuous communication between operator and patients ensures safety and reassurance throughout treatment sessions.
  • Customizable Configuration
    System can be adapted to specific client or facility requirements.
  • Built for Durability and Longevity
    Manufactured using high-quality materials and engineering standards for long-term, reliable performance.
