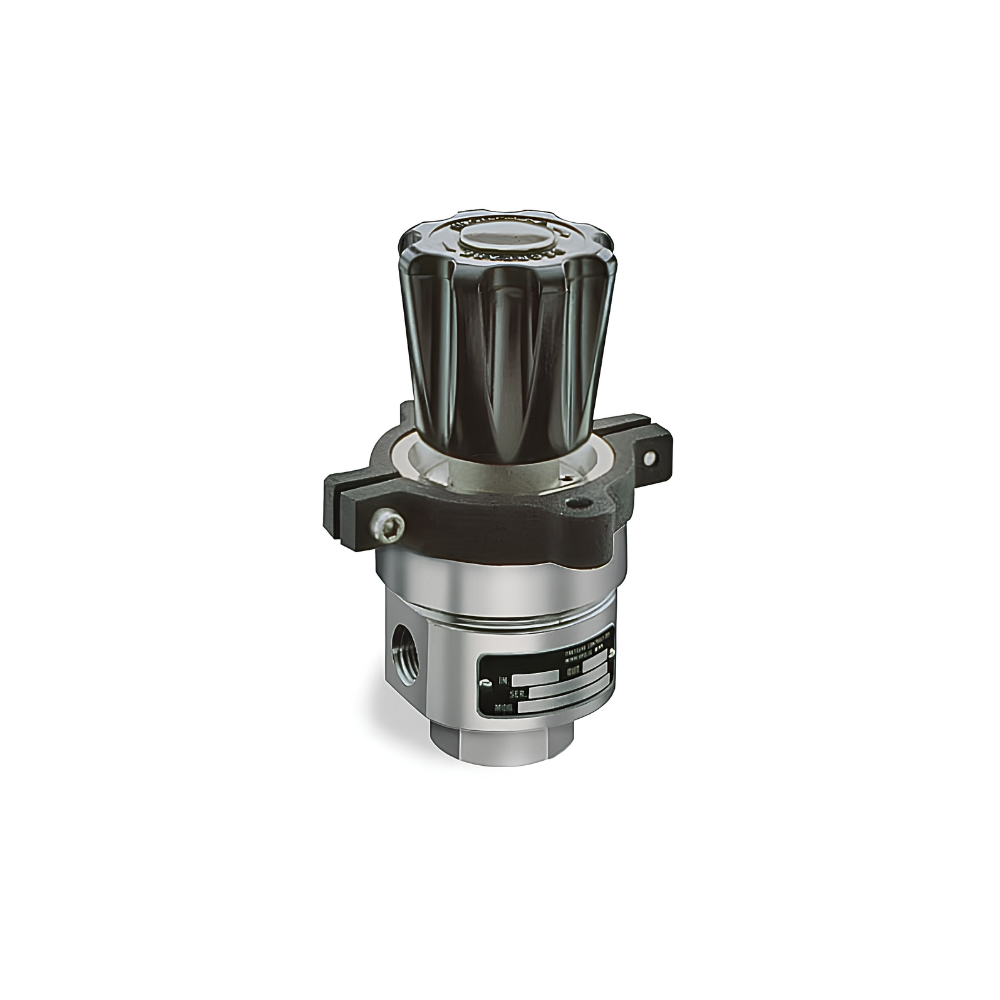

TESCOM™ 26-1500 Series Non-Venting Pressure Regulator

TESCOM™ 26-1500 Series Non-Venting Pressure Regulator

SKU: 26-1500
SKU: 26-1500 Category: Brand:

26-1500 Series non-venting regulator offers a sensitive, large elastomeric diaphragm design and precision outlet pressure control.

Aantal
Add to Quote
<br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br />

Questions?

If you have any questions let us know

+31 (0)85 79 24 300 sales@hytech-pommec.com

Product description

26-1500 Series non-venting regulator offers a sensitive, large elastomeric diaphragm design and precision outlet pressure control. Ideal for use in research labs, breathing air diving manifolds, low flow purge systems, gas and liquid sampling.

Downloads

Specifications
Maximum Inlet Pressure Stainless Steel: 6,000 psig / 414 barBrass & Aluminum: 5,000 psig / 345 bar
Outlet Pressure Ranges 0–50, 0–150, 0–250 psig / 0–3.4, 0–10.3, 0–17.2 bar
Body Material 316 Stainless Steel, Brass, Aluminum
Bonnet Material 300 Series Stainless Steel
Filter Material 40 Micron, 316 Stainless Steel
Seat Material CTFE
O-Ring Material Buna-N
Diaphragm Material Buna-N
Remaining Parts 300 Series Stainless Steel
Ambient & Fluid Operating Temperature -40 °F to 165 °F (-40 °C to 74 °C)
Port Type SAE, NPTF, MS33649
Port Size 1/4″, 3/8″, 1/2″ (Stainless Steel only)
Flow Capacity Cv = 0.08
Load Type Spring
Weight (Without Gauges) 3 lb (1.4 kg)

Features

  • Diaphragm design for accurate pressure regulation
  • Numerous porting and soft good options are available
  • Excellent repeatability
  • Non-venting (for venting design, see 26-1600 Series)
  • Low operating handknob torque
  • Panel mounting (bracket included)
  • Gauge ports available
  • High flow Cv = 0.24 version is available (maximum inlet pressure: 3000 psig / 207 bar)
