Launch and Recovery System (LARS) for two divers with a SWL of 950-1300Kg
If you have any questions let us know

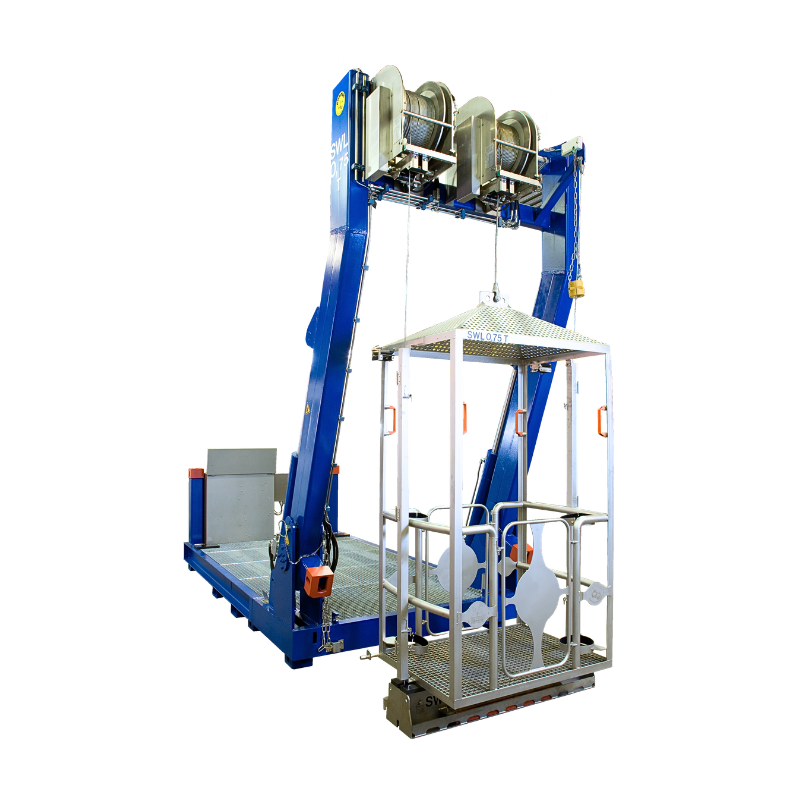

The Hytech-Pommec Launch and Recovery System supports the safe deployment and recovery of two divers during subsea operations. It transports divers to and from the subsea work site and is designed for light operation solutions.
The baseframe is slightly larger than the Compact version, providing more working area for the diver and LARS supervisor.
Two man rider winches are mounted on top of the A-frame. A separate HPU skid contains two electrically driven hydraulic power units and can be positioned close to the system.
Local controls are mounted on the rear of the baseframe, giving the operator a clear overview of the working area during launch and recovery operations.
| Specification | Detail |
|---|---|
| System type | Launch and Recovery System (LARS) |
| Diver capacity | 2 divers |
| Application | Transport of divers to and from subsea work sites |
| Operation type | Light operation solution |
| Main structure | A-frame |
| Baseframe | Slightly larger than the Compact version |
| Man rider winches | 2 |
| Winch position | Mounted on top of the A-frame |
| Hydraulic power units | 2 |
| HPU drive | Electric |
| HPU arrangement | Separate skid |
| Control position | Rear of baseframe |
