LED bell light9W DLassy

Hytech-Pommechigh brightness bell light can be used as
main or secondary lighting system inside a hyperbaric
environment.

Product description

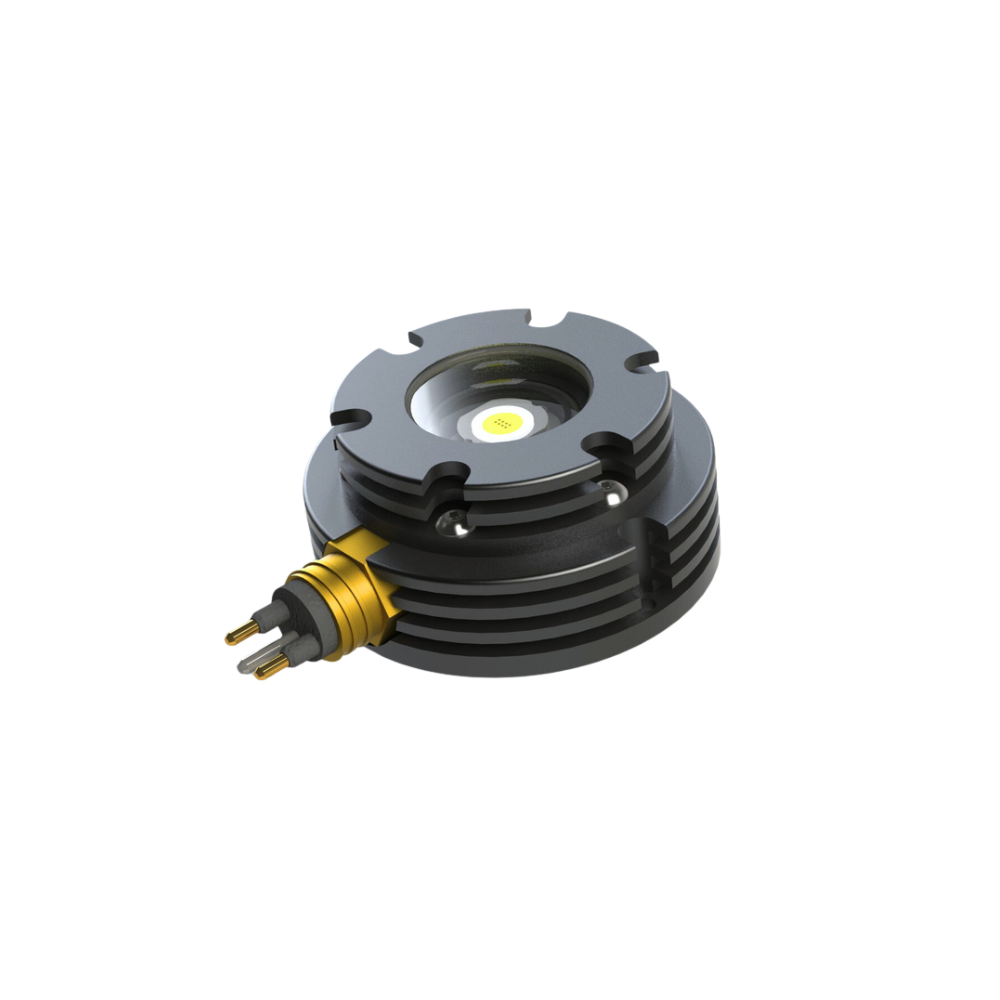

LED Bell Light 9W DLassy

The Hytech-Pommec high brightness LED bell light provides main or secondary lighting inside hyperbaric environments. The light withstands pressures up to 500 msw (1640 fsw) and can operate in oxygen-rich atmospheres and wet or dry environments.

Helium environments

The bell light can also operate in helium environments when fitted with an optional helium vent valve.

Compact lighting unit

The light measures 80 mm in diameter and 37.5 mm in height, with an approximate weight of 340 gram. It operates at 16–28 VDC with a power supply of approximately 9W and delivers 1040 lm at 4000K.

Specifications

Specification	Value
Product	LED bell light 9W DLassy
Overall diameter	80 mm (3.15’’)
Overall height	37.5 mm (1.48’’)
Weight	Approx. 340 gram
Mounting holes front	2 x 4 mm, pitch size 73 mm
Mounting holes back	6 x M4, pitch 57 mm, 360° / 6
Temperature	-30 to +40 °C
Maximum pressure	52 bar (750 PSI)
Pressure resistance	Up to 500 msw (1640 fsw)
Voltage	16-28 VDC
Current	0,33-0,55 A
Power supply	ca. 9W
Colour	4000K
Luminous flux	1040 lm
Spare part kit H.80.00035	5 different O-rings
Spare part kit H.80.00036	O-ring and spring

Features

High brightness LED bell light
Suitable as main or secondary hyperbaric lighting
Suitable for oxygen-rich atmospheres
Suitable for wet and dry environments
Suitable for helium environments with optional helium vent valve
Withstands pressures up to 500 msw (1640 fsw)
Approx. 9W power supply
1040 lm luminous flux
