Product description

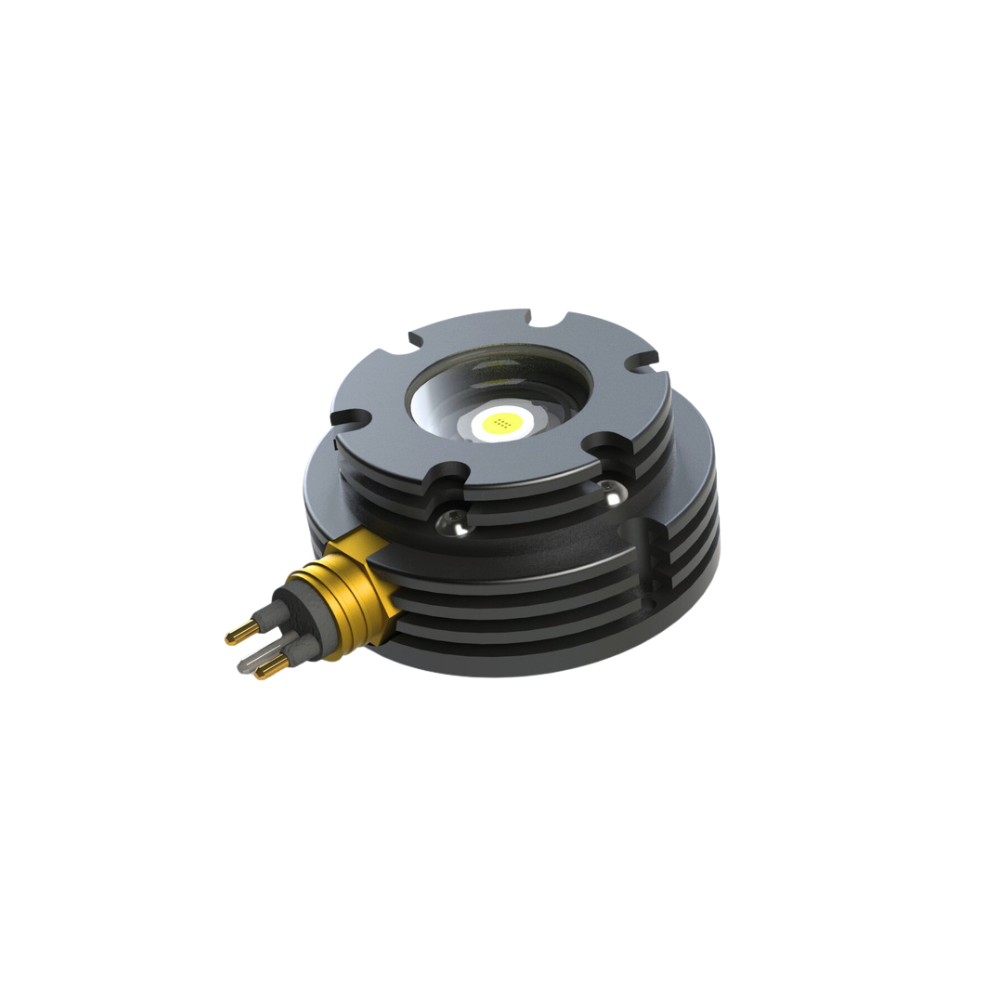

LED Light 9W DL Dimmable
The Hytech-Pommec high brightness LED light provides main or secondary lighting inside a hyperbaric environment. It operates at a nominal input voltage of 24 VDC and supports an input voltage range of 16–32 VDC.
Dimmable operation
The light delivers a luminous flux of 1040 lm at 4000K with a maximum power consumption of 9 Watt.
Dimming can use either a 5 Kohm potentiometer between pins 3 and 5 or a 0–5 V input signal. Below 1.65 VDC, the light is fully on, while above 4.2 VDC, it is fully off.
For simple on/off operation, connect power only to pin 1 (+) and pin 2 (-).
