Specifications
Focus key phrase: DL07 1/2 inch chuck
Meta description: DL07 with 1/2 in. / 12 mm chuck, 3–10 GPM / 11.3–38 LPM flow range, 70–140 bar working pressure and 3.5 kg weight.
Improved product description:

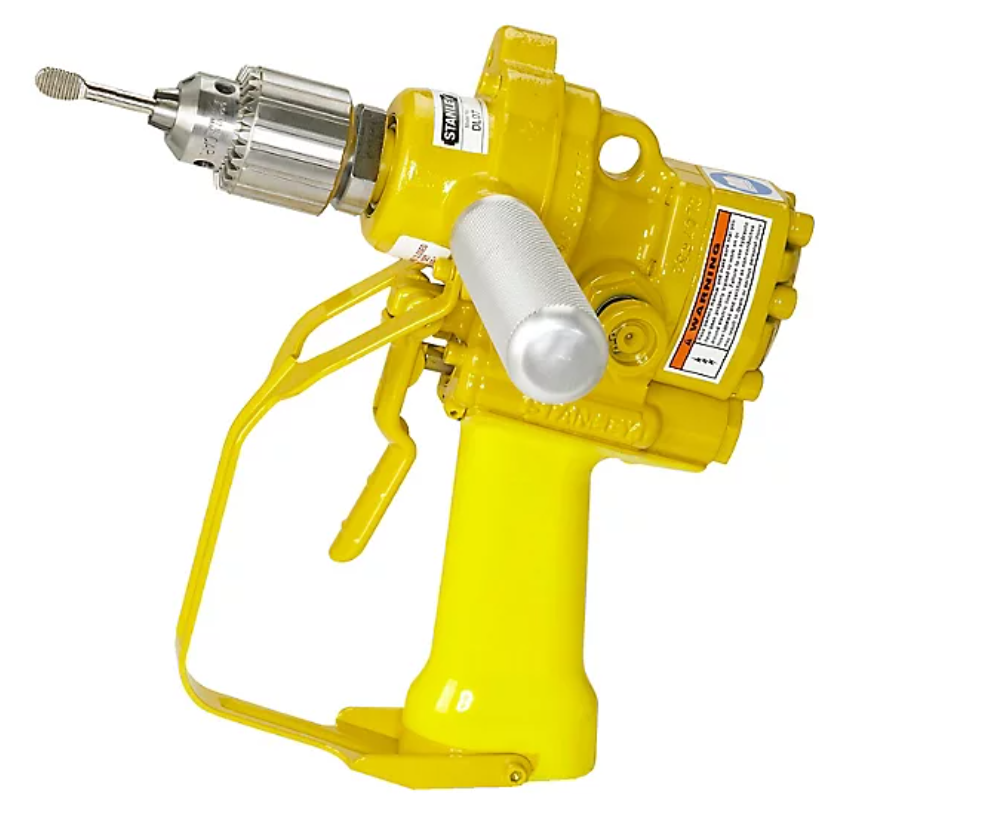

The DL07 features a 1/2 in. / 12 mm chuck and operates at a flow range of 3–10 GPM / 11.3–38 LPM. Working pressure ranges from 1000–2000 PSI / 70–140 bar, with a full relief setting of 2250 PSI / 155 bar.
The DL07 weighs 7.8 lbs / 3.5 kg and measures 10.5 in. / 26.7 cm in length. It features -8 SAE O-ring hydraulic ports and 3/8 in. NPT male thread hose whips. Couplers are not included; see accessories.
Specifications:
| Specification | Value |
|---|---|
| Model | DL07 |
| Capacity | 1/2 IN. CHUCK / 12 MM CHUCK |
| Flow Range | 3 – 10 GPM / 11.3 – 38 LPM |
| Working Pressure | 1000-2000 PSI / 70-140 BAR |
| Full Relief Setting | 2250 PSI / 155 BAR |
| Weight | 7.8 LBS / 3.5 KG |
| Length | 10.5 IN. / 26.7 CM |
| Hydraulic Ports | -8 SAE O-RING |
| Couplers | NO (SEE ACCESSORIES) |
| Hose Whips | 3/8 IN. NPT MALE THREAD |
| Torque | 4 FT-LB A 500 PSI / .5 NM @ 35 BAR |
| 9 FT-LB A 1000 PSI / 1.2 NM @ 70 BAR | |
| 14 FT-LB A 1500 PSI / 1.9 NM @ 105 BAR | |
| 19 FT-LB A 2000 PSI / 2.6 NM @ 140 BAR |
