The C-Depth system is designed for electronic diver depth monitoring in lightweight diving operations, removing the need for a pneumatic diving control panel.
If you have any questions let us know
The C-Depth monitoring system is a portable electronic diver depth monitoring solution designed for lightweight commercial diving operations. It provides accurate real-time depth information at the surface and eliminates the need for a pneumatic diving control panel. As a result, dive supervisors can monitor diver depth quickly and efficiently during underwater operations.
Accurate Electronic Depth Monitoring
The C-Depth monitoring system delivers a clear surface read-out for air diving operations, including tethered scuba diving with rope or rope and communication lines. In addition, operators can use the system for bottom profiling and other underwater survey applications.

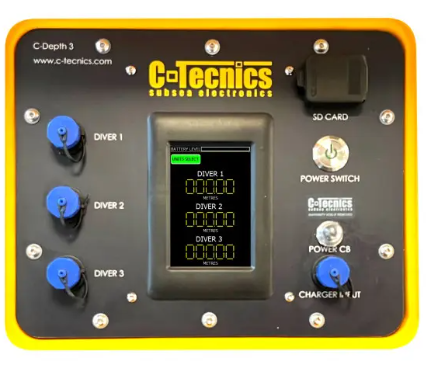

The system monitors up to three independent depth channels simultaneously. Supervisors can also select depth readings in metres or feet for either seawater or freshwater, allowing the system to adapt to different operational requirements.
Compact and Easy to Deploy

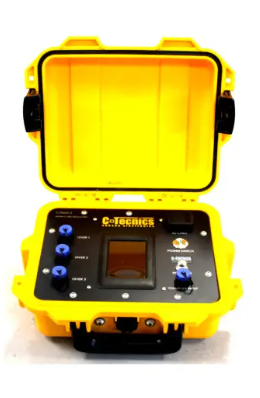

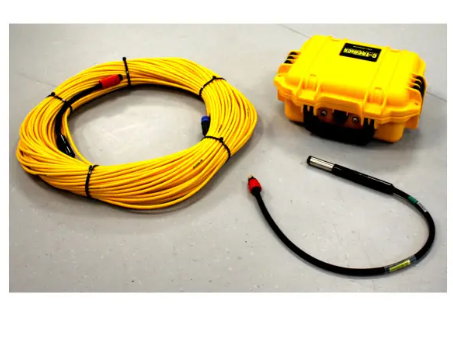

The C-Depth monitoring system includes a surface display unit, a power and signal cable, and a high-accuracy pressure transmitter. The compact transducer mounts easily to a diver or can be used as a handheld sensor for bottom profiling and inspection work.
Various cable lengths are available, allowing operators to configure the system for different diving projects. Furthermore, the lightweight design makes transport, setup and deployment quick and straightforward.
Commercial diving companies use the C-Depth monitoring system for inshore and offshore diving, scientific research, harbour maintenance, underwater inspections and survey work. It also provides an effective solution wherever electronic depth monitoring is preferred over traditional pneumatic systems.
The robust design delivers dependable performance in demanding marine environments while maintaining accurate depth measurements throughout the dive. Consequently, supervisors receive reliable depth information that supports safer and more efficient diving operations.
For more commercial diving equipment and monitoring solutions, explore our range of diving control systems, subsea instrumentation and underwater communication equipment. Contact our specialists for technical advice and assistance in selecting the right solution for your application.
| Dimensions | 300 × 249 × 119 mm |
| Weight | 2.8 kg |
| IP Rating | IP65 |
| Battery | Rechargeable LiPo |
| Battery Run Time | Approx. 6 hours |
| Operating Temperature | -20 to +60 °C |
| Storage Temperature | 0 to +50 °C |
| Channels | 3 |
| Display | 3.2″ LCD Touchscreen |
| Depth Units | Metres / Feet (Seawater or Freshwater, Selectable) |
