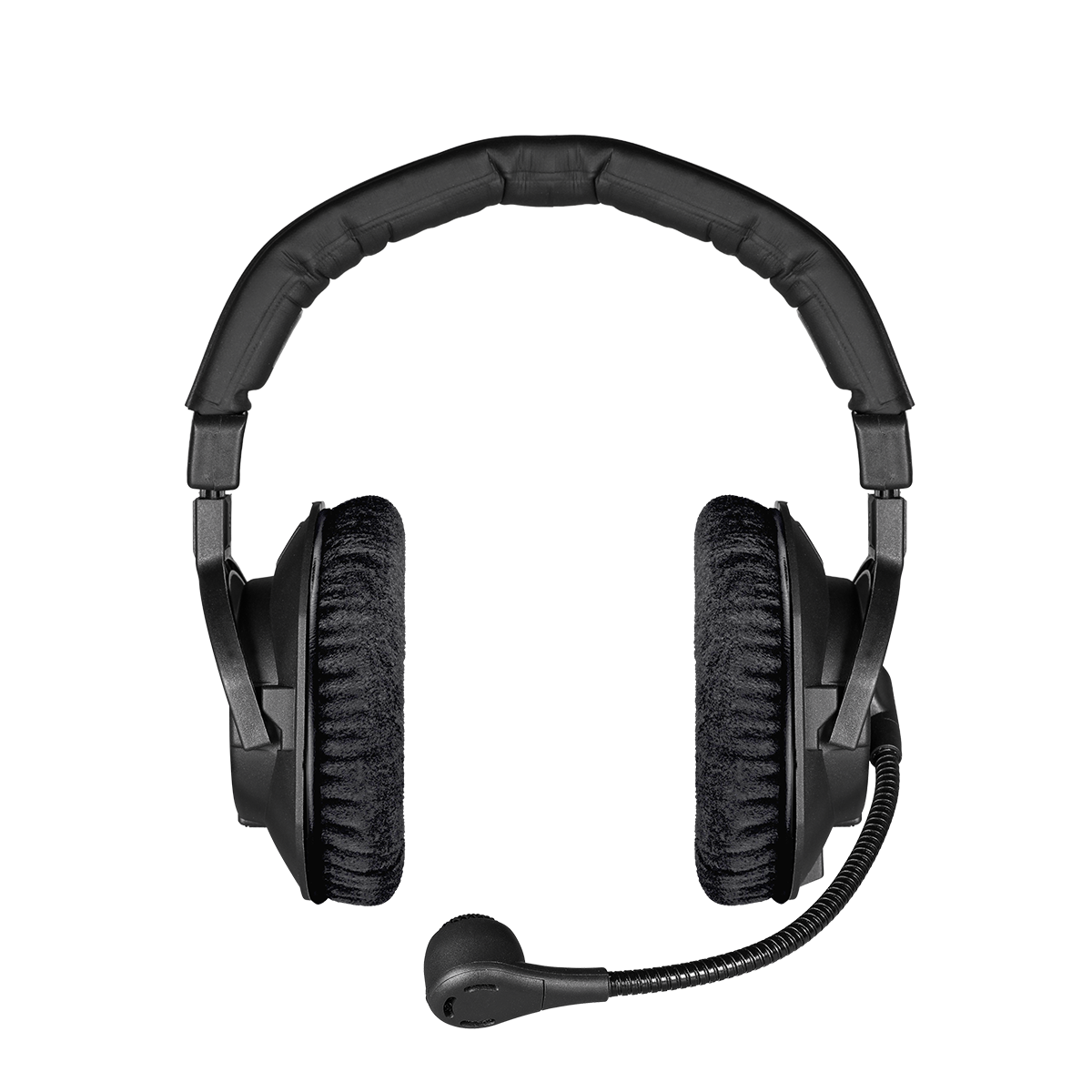

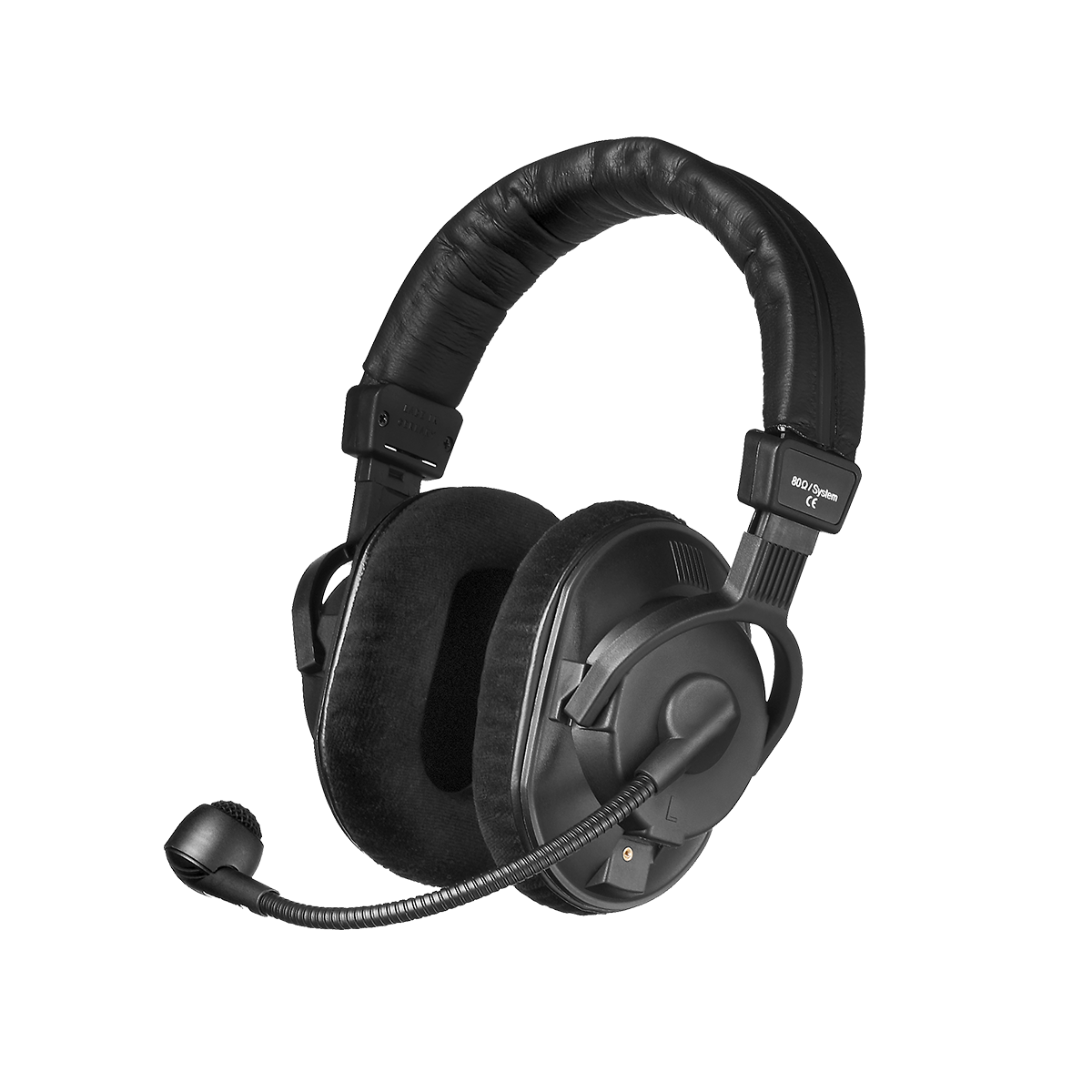

Wired over-ear headset with integrated microphone and detachable 7-pole Binder connector for reliable internal communication.
If you have any questions let us know

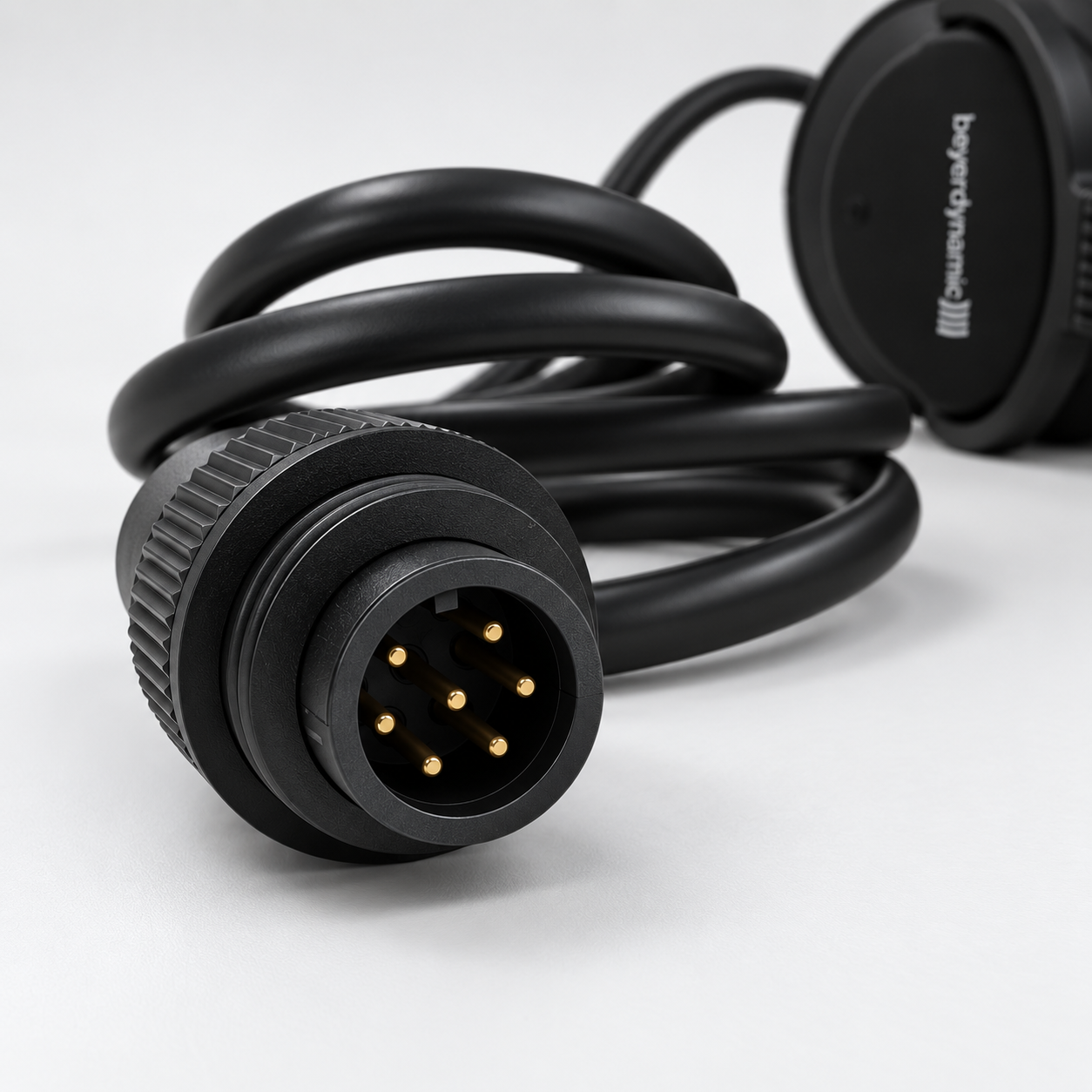

This wired over-ear headset is designed for secure internal communication and features a detachable cable with a 7-pole Binder connector.
The closed, circumaural design fits around the ear. The headphones have a nominal impedance of 80 ohms, a frequency response of 10–30,000 Hz and a nominal sound pressure level of 100 dB SPL.
The headset includes a dynamic microphone with a hypercardioid polar pattern. Its wired connection and detachable 7-pole Binder cable provide the connection interface for the communication system.
| Specification | Detail |
|---|---|
| Wearing style | Over-ear |
| Operating principle | Closed |
| Transmission type | Wired |
| Remote | Without remote |
| Nominal headphone impedance | 80 ohms |
| Headphone frequency response | 10–30,000 Hz |
| Nominal sound pressure level | 100 dB SPL |
| Sound coupling to the ear | Circumaural (around the ear) |
| Cable & plug | Detachable cable – 7-pole Binder |
| Microphone polar pattern | Hypercardioid |
| Microphone transducer type | Dynamic – Hypercardioid |
