The Hytech Pommec BA Case is designed as a mobile life support system for high risk operations, such as inert entries. For more than 30 years, this system has proven its reliability within the life support industry, where it is deployed worldwide to ensure safe and controlled breathing air supply under extreme conditions.
If you have any questions let us know
The Hytech-Pommec BA Case is a mobile life support system. It supplies breathing air for high risk operations, such as inert entries. The system has proven its reliability for more than 30 years. It is deployed worldwide for safe and controlled breathing air supply under extreme conditions.

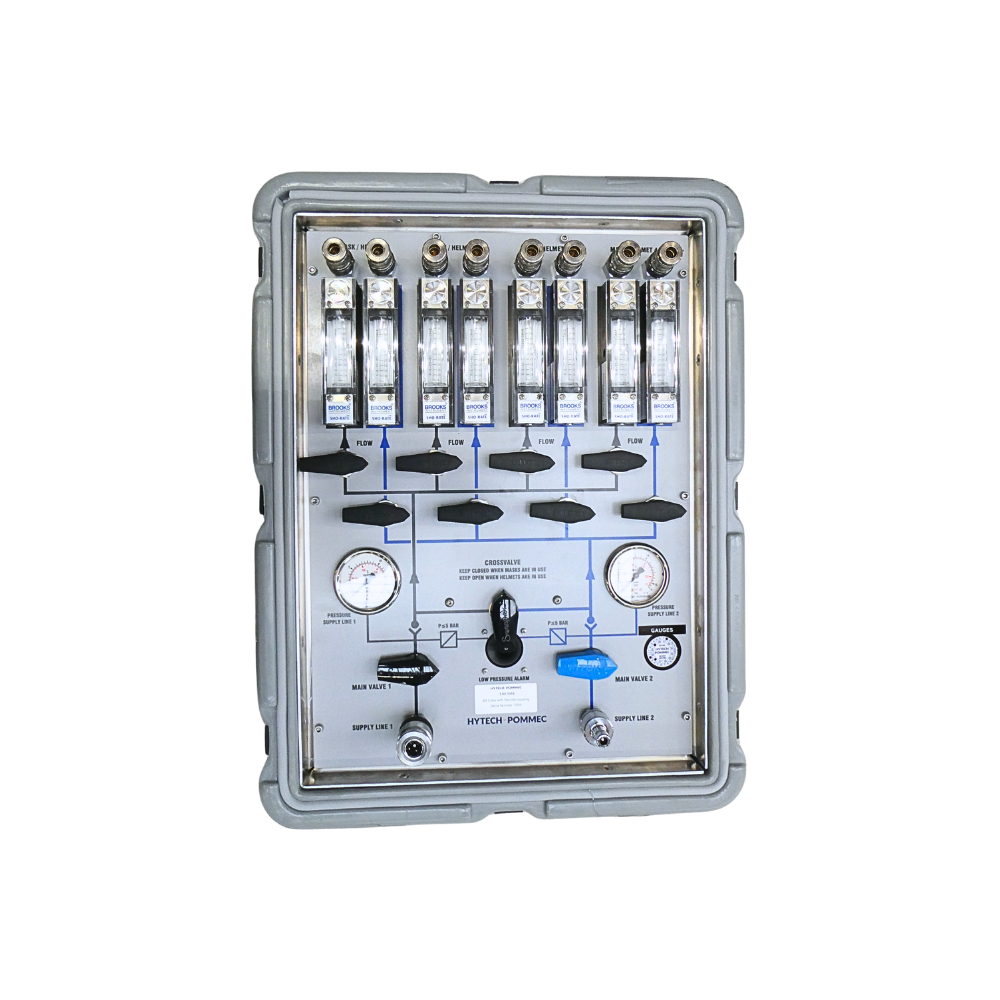

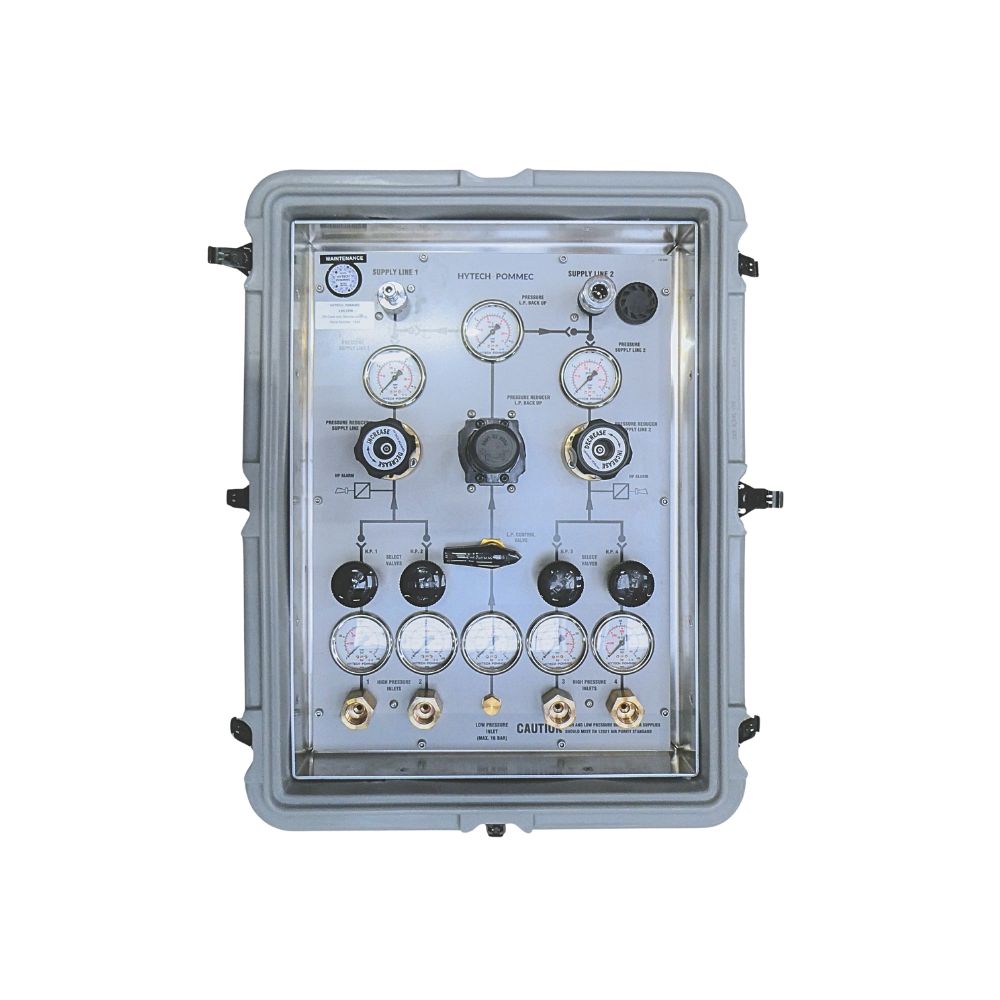

The BA Case consists of two panels: Panel A and Panel B. Panel A lets the operator select the breathing air source. It also controls the air supply and monitors the airflow routed to Panel B. Panel B distributes the breathing air. It supplies up to 4 breathing helmets or 8 breathing masks.
The system has 4 HP supply connections, rated up to 200 bar. It also has 1 LP supply connection, rated up to 16 bar. Two HP pressure reducers adjust from 5 to 15 bar. One LP pressure reducer adjusts from 0.3 to 10 bar. The system provides primary and secondary supply for up to 4 breathing helmets or soft masks.
| Specification | Value |
|---|---|
| Max. breathing helmets | 4 |
| Max. breathing masks | 8 |
| HP supply connections | 4× (max. 200 bar) |
| LP supply connection | 1× (max. 16 bar) |
| HP pressure reducers | 2× (adjustable 5-15 bar) |
| LP pressure reducer | 1× (adjustable 0.3-10 bar) |
| Proven reliability | More than 30 years |
