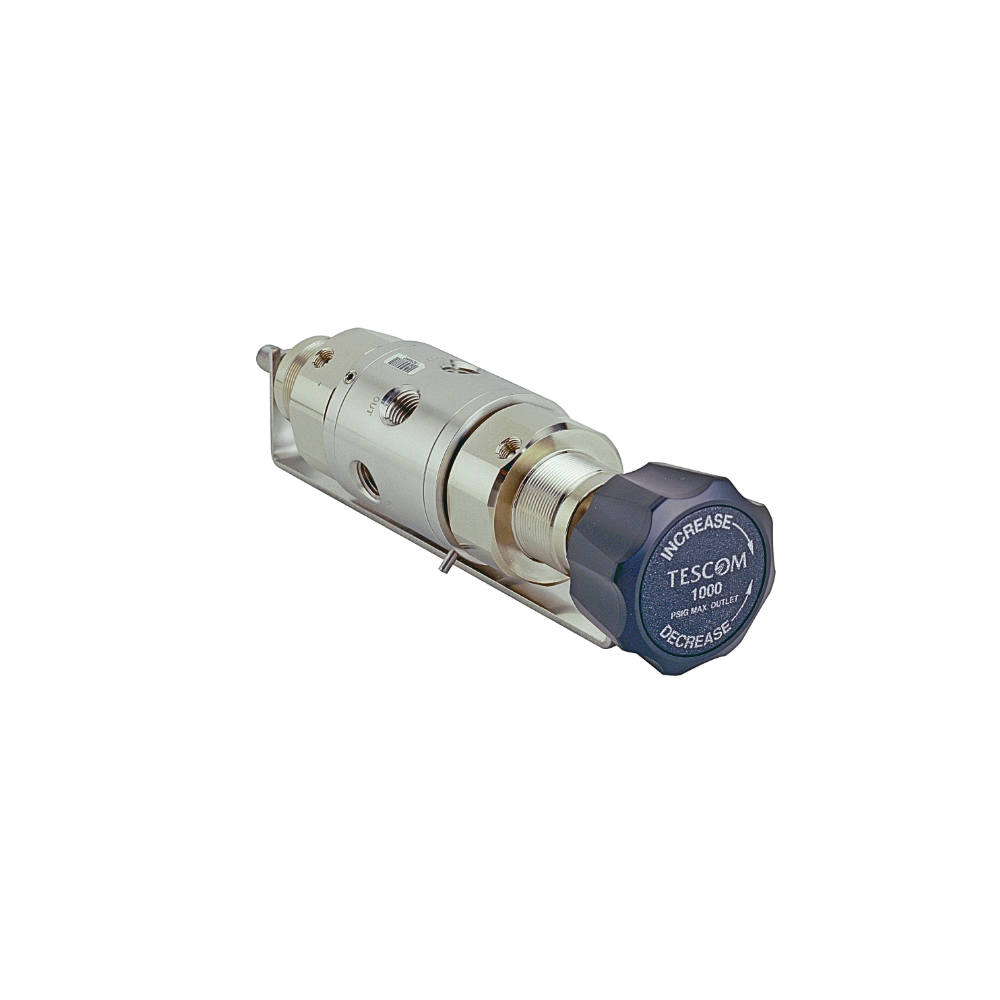

TESCOM™ CR441800 Series Changeover Pressure Regulator

SKU: CR441800
SKU: CR441800 Category: Brand:

CR441800Series is a compact, high pressure changeover system which combines the changeover regulator and a line regulator into a compact wall mount system for general purpose and industrial gases.

Aantal
Add to Quote
<br />
<b>Warning</b>:  Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br />
<br />
<b>Warning</b>:  Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br />

Questions?

If you have any questions let us know

Product description

The CR441800 high pressure changeover system provides a compact and reliable solution for continuous gas supply applications. Designed for general purpose and industrial gases, this wall-mounted system combines a changeover regulator and a line regulator into one efficient unit.

The CR441800 Series automatically manages two high-pressure gas sources to maintain a continuous low-flow gas supply. This helps prevent interruptions and improves system reliability in applications where consistent gas delivery is essential.

With its compact design, the CR441800 high pressure changeover system saves installation space while providing accurate pressure control. It is suitable for a wide range of industrial environments that require dependable gas management and uninterrupted operation.

The system is ideal for analyzer carrier gas applications, where stable gas flow supports accurate measurement and reliable analysis. Additionally, it performs well in laser resonator gas systems that require a consistent and controlled gas supply.

Built for professional use, the CR441800 Series offers an efficient solution for laboratories, industrial facilities and specialised gas handling systems. Its integrated design simplifies installation while reducing the need for separate regulator components.

For applications requiring continuous gas supply and precise pressure control, the CR441800 high pressure changeover system delivers reliable performance and easy operation. Contact our specialists for technical advice and support in selecting the right gas control solution for your application.

Specifications

Maximum Inlet Pressure 3,500 or 6,000 psig / 241 or 414 bar
Maximum Delivery Pressure Seven Delivery Pressure Options from 500 to 2,000 psig / 34.5 to 138 bar
Body Material Brass, 316 Stainless Steel, or Nickel-Plated Brass
Bonnet Material 300 Series Stainless Steel, Brass, or Nickel-Plated Brass
Valve Seat Material Vespel®
O-Ring Material FKM
Remaining Parts Brass and 300 Series Stainless Steel
Operating Temperature -15 °F to 165 °F (-26 °C to 74 °C)
Port Size & Type 1/4 NPTF
Flow Capacity Cv = 0.06
Weight 3 lb (1.4 kg)

Features

  • Maximum inlet pressure: 3500 or 6000 psig / 241 or 414 bar
  • Seven maximum delivery pressures from 500 to 2000 psig / 34.5 to 138 bar
  • Designed to provide a continuous flow of gas for applications requiring stored gas supplies
  • Available in 316 Stainless Steel or Brass
  • Based on TESCOM’s field-proven 44-1800 regulator
