The Hytech-Pommec CO2 scrubber unit removes CO2 from the atmosphere in hyperbaric chambers. The scrubber has an induced flow fan that pulls breathing gas through a canister filled with soda lime to adsorb CO2.
If you have any questions let us know
The Hytech-Pommec CO2 scrubber unit removes CO2 from hyperbaric chamber air. An induced flow fan pulls breathing gas through a canister. Sodalime inside the canister absorbs the CO2. One scrubber serves eight persons. It works for more than 6 hours with adequate gas circulation.

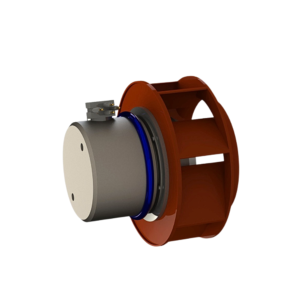

Hytech-Pommec designed the fan motor. It has completely potted stator electronics. This protects the motor from raised oxygen levels, humidity and pressure. The motor uses a brushless design. This makes it reliable and maintenance-free.

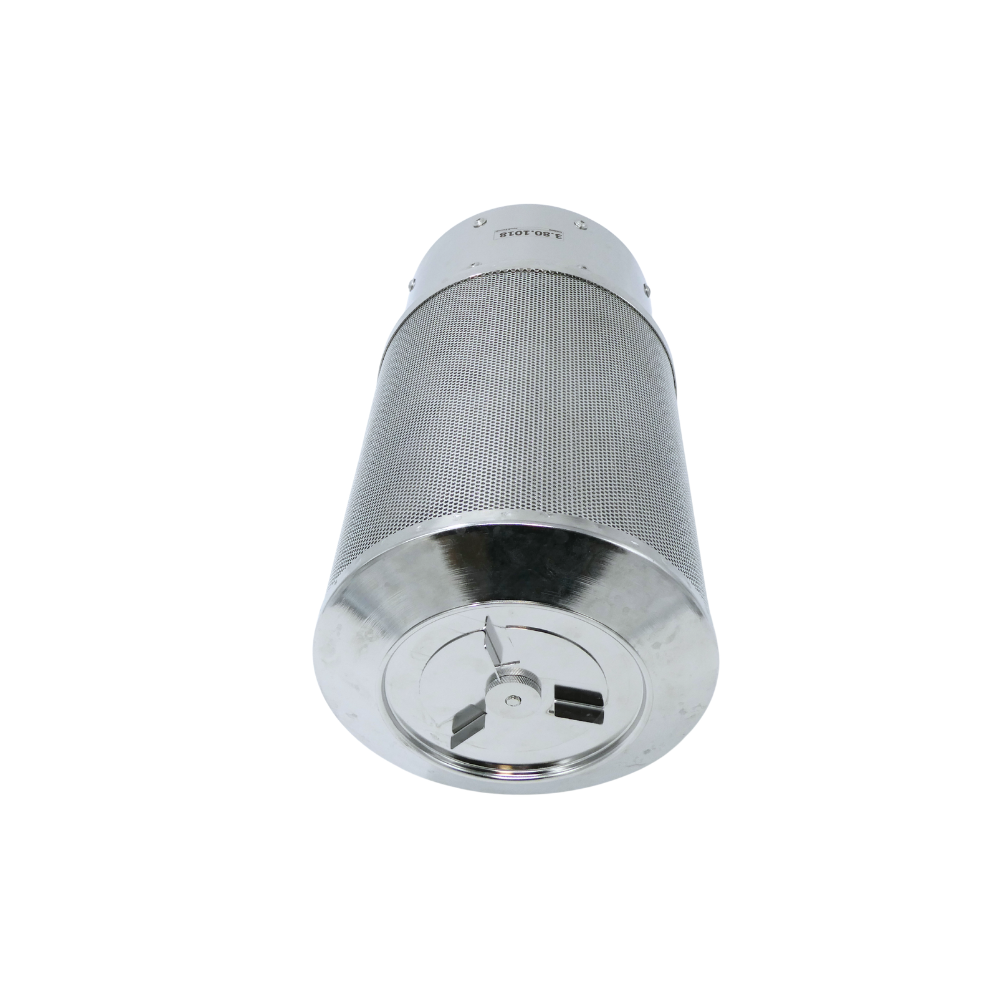

The canister holds approximately 7.5 kg (16.5 lbs) of CO2 adsorbent. A bayonet locking mechanism connects it to the motor. This allows easy replacement. The canister has an internal mesh rate of 0.3 mm. This retains the smallest grains. You can also use sodalime with a 1-2 mm particle size. This minimises dust formation, extends sodalime duration and reduces costs.
| Specification | Value |
|---|---|
| Dimensions (L x W x H) | 422 x 226 x 245 mm |
| Weight, scrubber (empty) | 8.5 kg |
| Weight, scrubber (full) | 16 kg |
| Weight, canister (empty) | 2.5 kg |
| Weight, canister (full) | 10 kg |
| Power supply | 24 – 28 VDC, 2 A* |
| Rotating speed (without canister) | 1400 – 3300 rpm |
| Depth | 180 mm (240 mm incl. connectors) * |
| Operating pressure | max 42 bar (420 msw) |
| CO2 adsorbent capacity | approx. 7.5 kg (16.5 lbs) |
| Internal mesh rate | 0.3 mm |
| Sodalime particle size (compatible) | 1-2 mm |
