Hytech-Pommechigh brightness bell light can be used as
main or secondary lighting system inside a hyperbaric
environment.
If you have any questions let us know

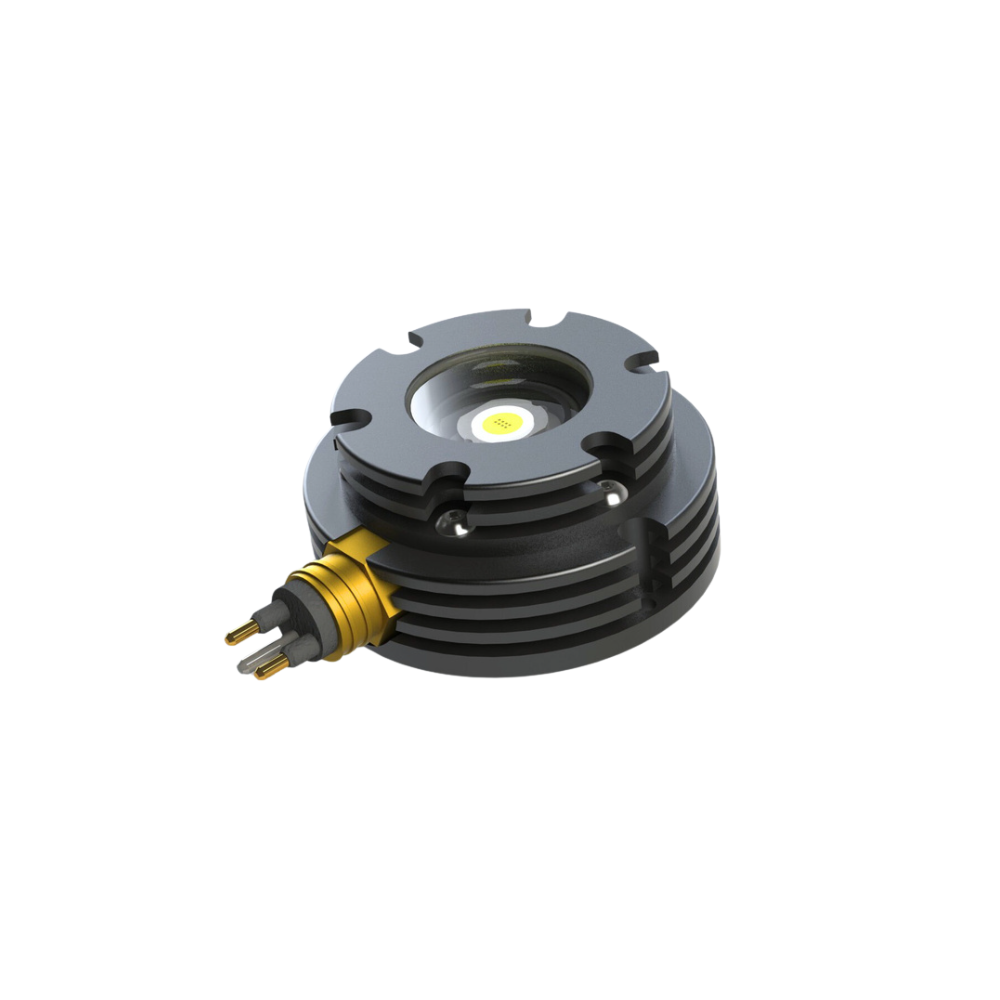

The Hytech-Pommec high brightness bell light works as a main or secondary lighting system inside a hyperbaric environment. The LED bell light withstands pressures up to 500 msw (1640 fsw). It can be used in oxygen rich atmospheres, wet or dry environments and helium environments. Helium environments require an optional helium vent valve.
The overall diameter is 80 mm (3.15”). The overall height is 37.5 mm (1.48”). The light weighs approximately 340 grams. The front mounting holes are 2× 4 mm, pitch size 73 mm. The back mounting holes are 6× M4, pitch 57 mm, 360°/6.
The light operates between -30 and +40°C. It withstands a maximum pressure of 52 bar (750 PSI). It runs on 16-28 VDC at 0.33-0.55 A. Power supply is approximately 9W. The colour temperature is 4000K, with a luminous flux of 1040 lm.
The spare kit H.80.00035 contains 5 different O-rings. Kit H.80.00036 contains an O-ring and spring.
| Specification | Value |
|---|---|
| Overall diameter | 80 mm (3.15”) |
| Overall height | 37.5 mm (1.48”) |
| Weight (approx.) | 340 gram |
| Mounting holes front | 2× 4 mm, pitch size 73 mm |
| Mounting holes back | 6× M4, pitch 57 mm, 360°/6 |
| Temperature range | -30 to +40 °C |
| Max. pressure | 52 bar (750 PSI) |
| Voltage | 16-28 VDC |
| Current | 0.33-0.55 A |
| Power supply | ca. 9W |
| Colour | 4000K |
| Luminous flux | 1040 lm |
| Spare kit (O-rings) | H.80.00035: 5 different O-rings |
| Spare kit (O-ring and spring) | H.80.00036: O-ring and spring |
