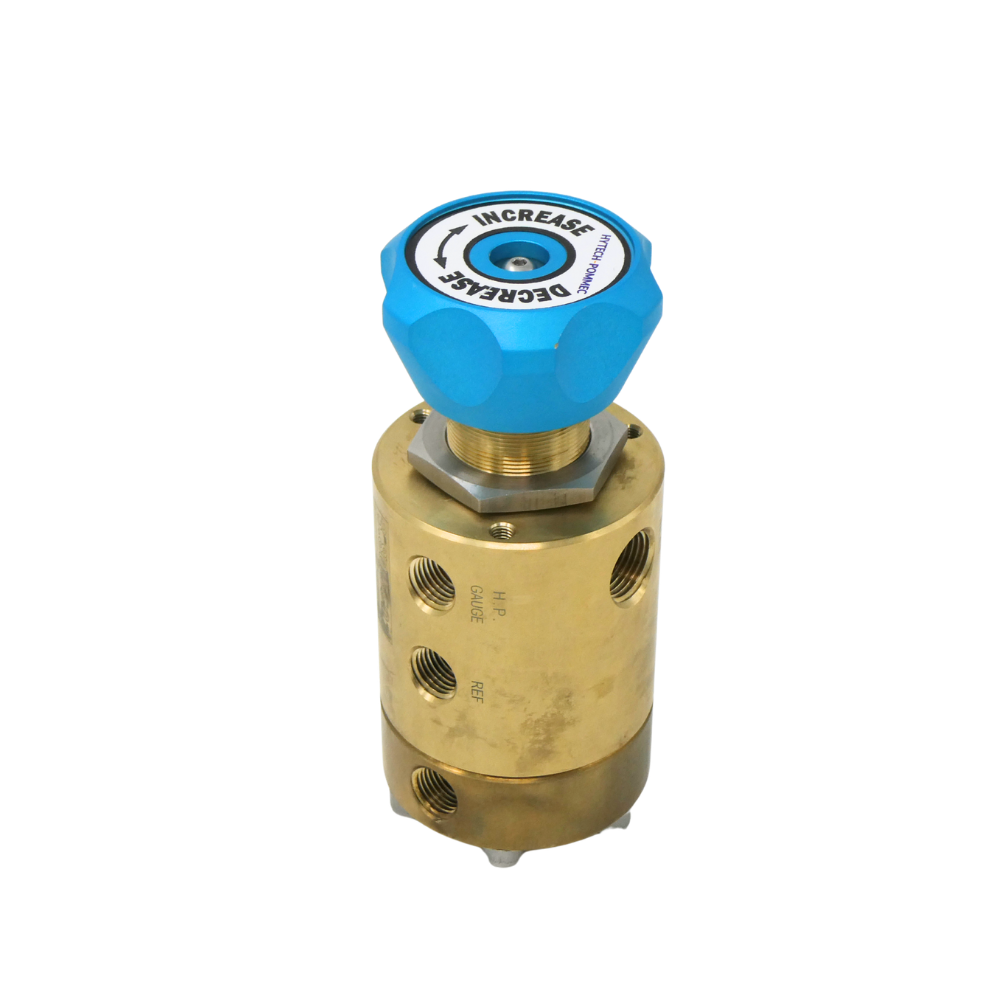

The AS4005 OXY-COMPACT pressure reducer is specifically designed for use in high pressure oxygen systems and is completely built up of oxygen compatible materials. This reducer has been successfully tested for burn-out safety according to DIN EN ISO 10524-1:2019 Chapter 8.7.
If you have any questions let us know
The AS4005 OXY-COMPACT pressure reducer is specifically designed for high-pressure oxygen systems and consists entirely of oxygen-compatible materials. Its compact, lightweight design supports panel mounting or direct connection to a high-pressure oxygen cylinder.
The pressure reducer provides a high flow rate and reliable operation without freezing. BAM in Berlin, Germany, tested the unit for burn-out safety under reference 20009664. Tracking is also applicable.
The AS4005 measures 146 x 62 x 62 mm and weighs 2.15 kg. It supports a maximum inlet pressure of 220 bar, while the outlet pressure is adjustable from 5 to 30 bar.
| Specification | Value |
|---|---|
| Model | AS4005 OXY-COMPACT |
| Application | High pressure oxygen systems |
| Materials | Oxygen compatible materials |
| Burn-out safety test | BAM, Berlin, Germany |
| BAM reference | 20009664 |
| Tracking | Applicable |
| Mounting | Panel mounting or directly connected to a high pressure oxygen cylinder |
| Dimensions LxWxH | 146x62x62 mm |
| Flow rate | See next page |
| Weight | 2.15 kg |
| Maximum inlet pressure | 220 bar |
| Outlet pressure | Adjustable from 5 to 30 bar |
• Dimensions LxWxH: 146x62x62 mm
• Flow rate: see next page
• Weight: 2.15 kg
• Maximum inlet pressure: 220 bar
• Outlet pressure: adjustable from 5 to 30 bar
• High flow rate
• Burn-out safety tested by BAM, Berlin, Germany (BAM Reference 20009664)
• Tracking applicable
• Compact design and light weight
• Extremely reliable without freezing
• Applicable for panel mounting or directly connected to a high pressure oxygen cylinder
