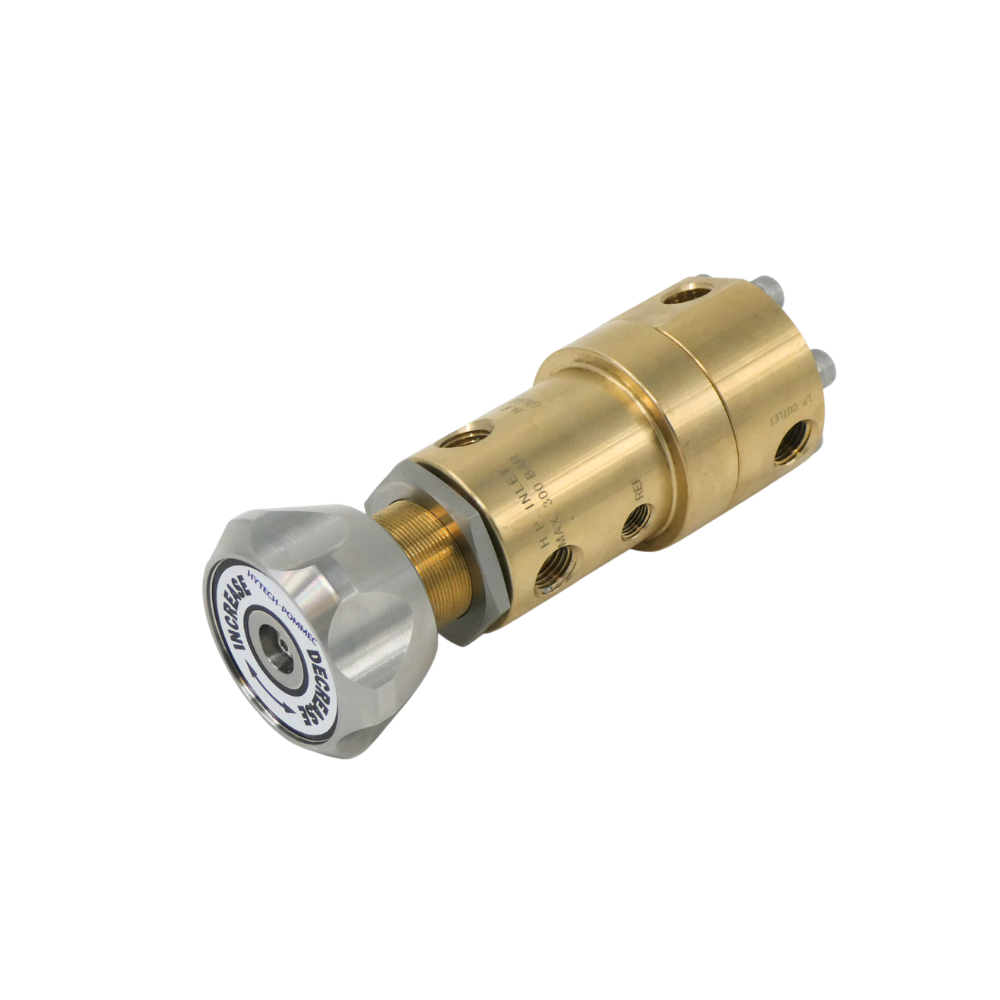

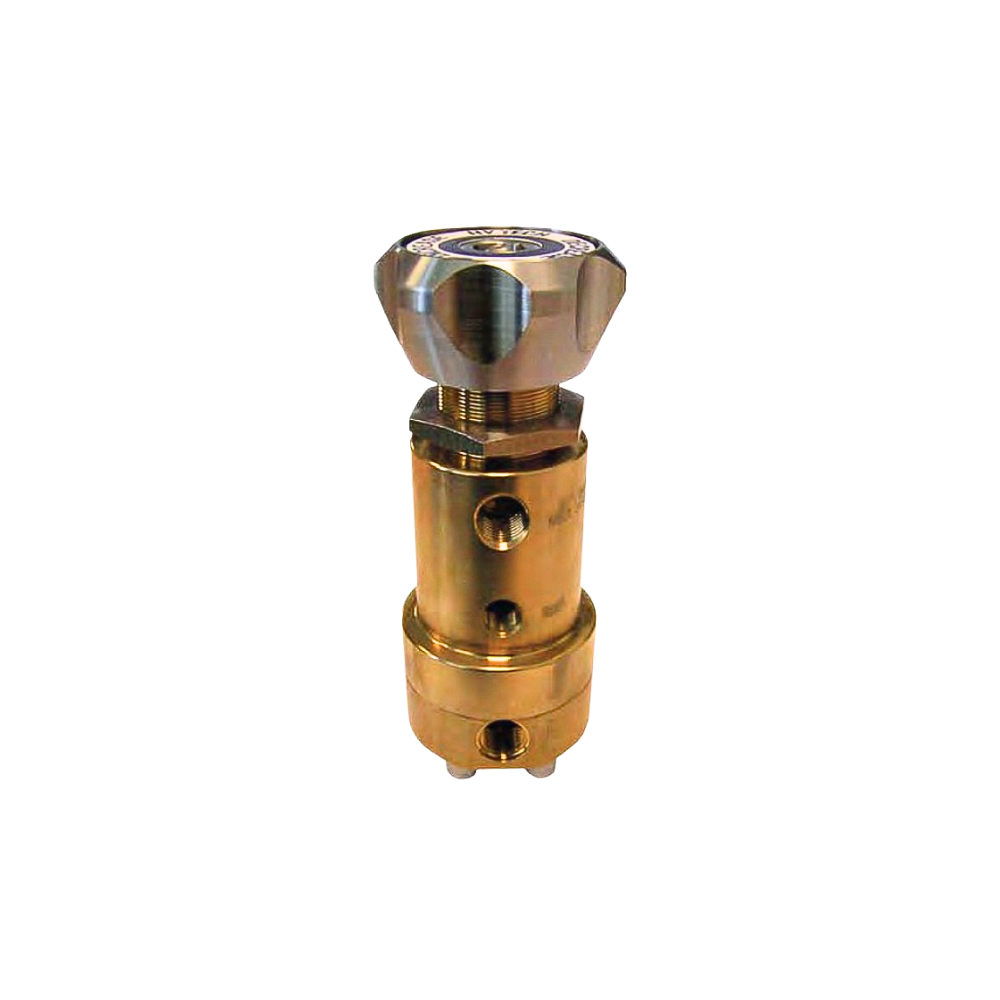

Reducer HT44406-26 barAssembly

Hytech-Pommec pressure reducer HT4440 is specifically engineered for applications that require lightweight, corrosion resistant, compact and reliable regulation in high pressure systems.

Product description

As the degree of complexity goes up, the degree of reliability goes down. Down-time costs money, and unplanned down-time can be disastrous. Accordingly, pressure masters are kept as simple as possible. They incorporate only one moving part. This rigid doctrine of simplicity, along with an extensive quality control, results in an unmatched reliability on the job. Sparekit for this reducer is: H.80.00051

Custom built
Hytech-Pommec Pressure masters are custom-made. This eliminates the drawbacks of standardized equipment. The reducer exactly fits the application requirements of the customer specifications.

Specifications

Specification	Detail
Maximum inlet pressure	300 bar / 4351 PSI / 31.5 MPa
Outlet pressure range	Adjustable from 6–40 bar / 87–580 PSI / 0.6–4 MPa
Alternative outlet pressure range	Adjustable from 6–26 bar / 87–337 PSI / 0.6–2.6 MPa
Reference pressure	Up to 40 bar
Inlet and outlet ports	1/4″ NPT
Gauge ports	1/4″ NPT
Reference ports	1/8″ NPT
Flow capacity	Cv 0.6
Temperature range	-10°C to +60°C
Body	Aluminum Bronze / DIN 17665
Piston	Armco 17-4-PH Rockwell
Disc springs	Steel CK67
O-rings	Buna-N 70 shore
Back-up rings	PTFE
Valve seat	PCTFE

Features

• Unequalled High-flow rates
• No freezing up
• Pressure ranges adjustable from 6-40 bar
• Standard tracking option
• Simplicity design
• Corrosion resistant
• Can be rebuilt to any of the other pressure masters
• Inlet max. 300 bar
