B18 Composite Gas Cylinder

B18 Composite Gas Cylinder

SKU: B18
SKU: B18 Categories: , Brand:

18-litre composite gas cylinder with 300 bar working pressure, lightweight carbon fibre construction, integrated RFID technology, and EN 12245 certification.

Aantal
Add to Quote
<br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br />

Questions?

If you have any questions let us know

+31 (0)85 79 24 300 sales@hytech-pommec.com

Product description

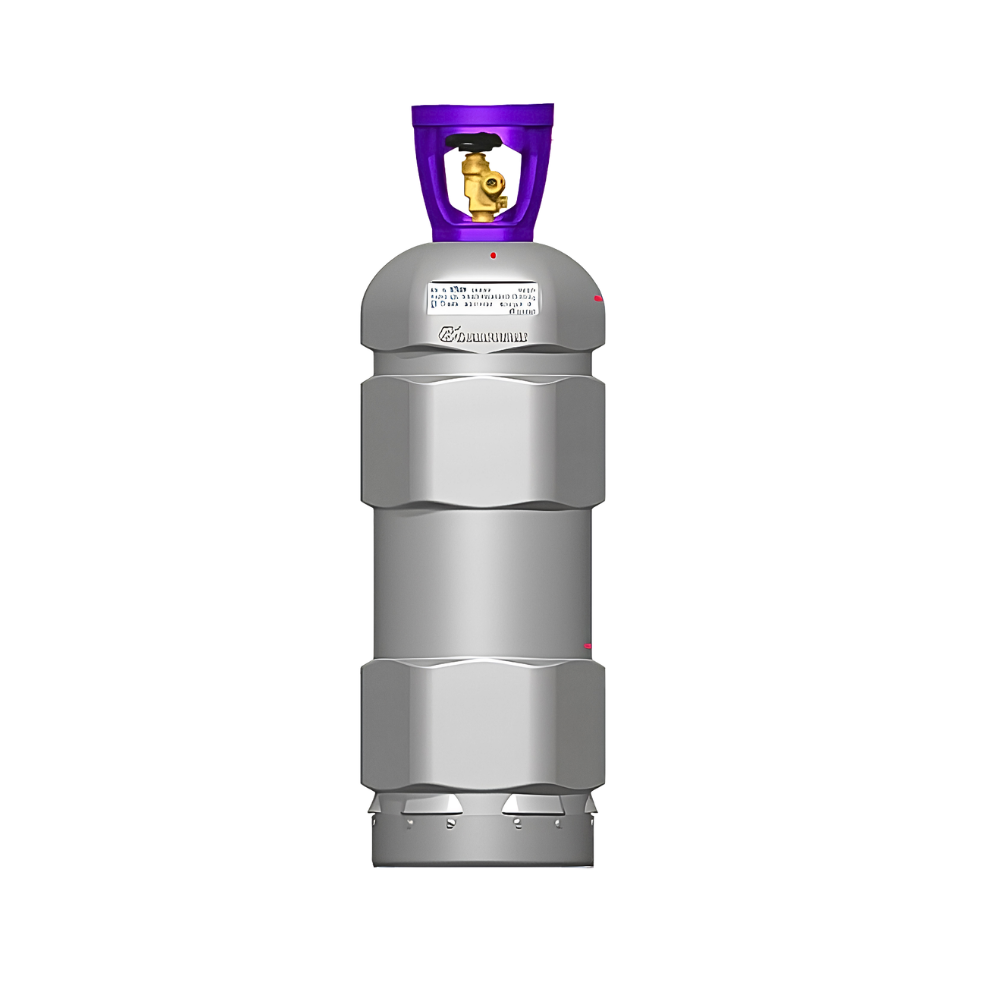

The Carbotainer B18 Composite Gas Cylinder (300 Bar) combines advanced composite technology with intelligent cylinder management to provide an efficient solution for high-pressure gas storage and transportation. Manufactured from an aluminium alloy liner reinforced with carbon fibre composite and protected by a robust thermoplastic shell, the cylinder offers superior durability while weighing considerably less than conventional steel alternatives.

Downloads

Specifications

Specification Value
Model B18
Type Composite Gas Cylinder
Water Capacity 18 Litres
Working Pressure 300 Bar
Hydraulic Test Pressure 450 Bar
Minimum Burst Pressure 900 Bar
Empty Weight 15.1 kg
Cylinder Material Aluminium Alloy AA6061 with Carbon Fibre Composite
Outer Protection Thermoplastic Protective Shell
Shock Protection Polyurethane Foam
Valve Connection 25E (EN ISO 11363-1)
Valve Guard Connection W80 × 2.309 (EN ISO 11117)
RFID Technology Integrated UHF RFID Tag
RFID Frequency 860–960 MHz
EPC Memory 128-bit
Approval Standard EN 12245
Design Life 20 Years
Food Suitable Yes
Vacuum Suitable Yes
