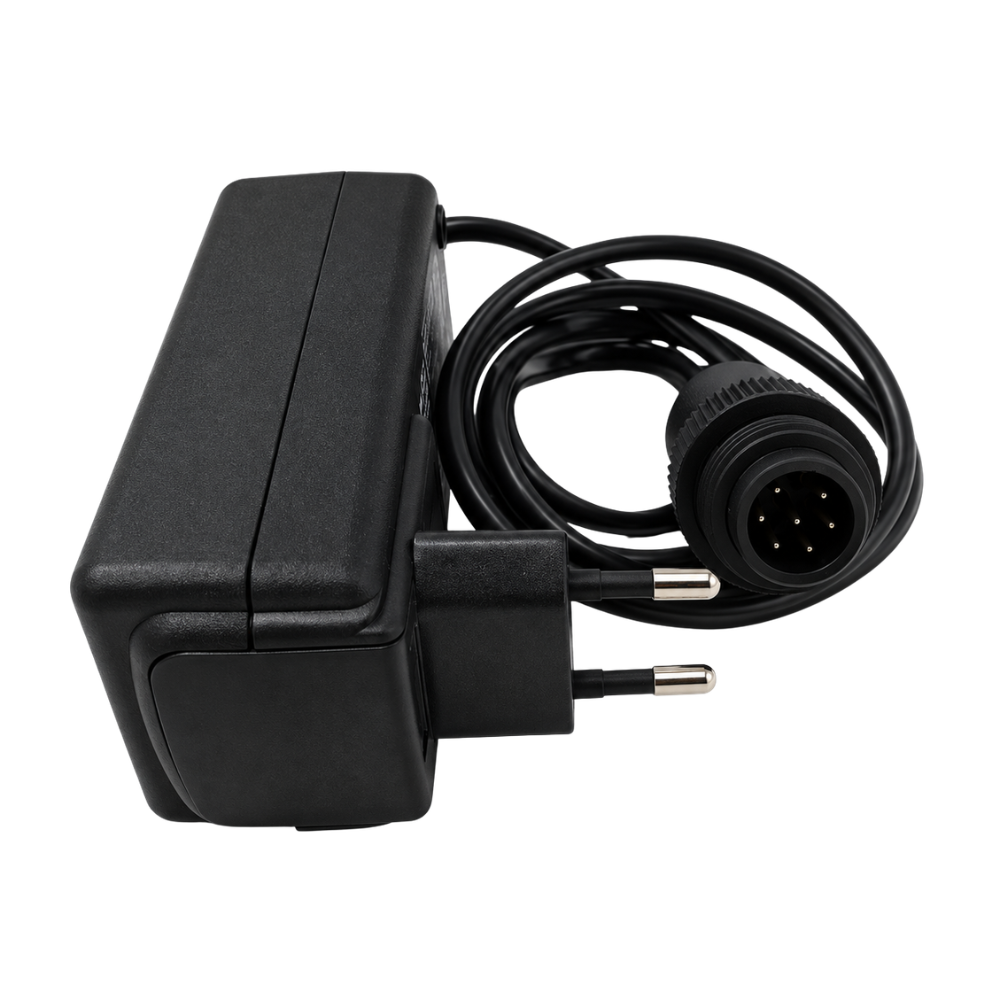

Battery charger for the DC0002-4, compatible with NiCd and NiMH batteries and featuring LED charging status indicators.
If you have any questions let us know
This charger is intended for the DC0002-4 and supports NiCd and NiMH batteries.
It operates from a 100–240 V AC, 50–60 Hz supply with a maximum input of 0.35 A. The charger uses LED indications to show the current charging stage or an error condition.
The charger displays different LED colours for no battery, initialisation, fast charging, top-off charging, trickle charging and error status.
| Specification | Detail |
|---|---|
| Product type | NiCd/NiMH charger |
| Intended for | DC0002-4 |
| Type | 2116 A-3-cell 10 A |
| Input voltage | 100–240 V AC |
| Frequency | 50–60 Hz |
| Maximum input current | 0.35 A |
| Yellow LED | No battery |
| Yellow LED | Initialisation |
| Orange LED | Fast charge |
| Green/Yellow LED | Top-off charge |
| Green LED | Trickle charge |
| Orange/Green LED | Error |
| No-battery output | 16.5 V |
| Initialisation current | 90 mA |
| Fast-charge current | 1.0 A |
| Top-off charge current | 130 mA |
| Trickle-charge current | 30 mA |
