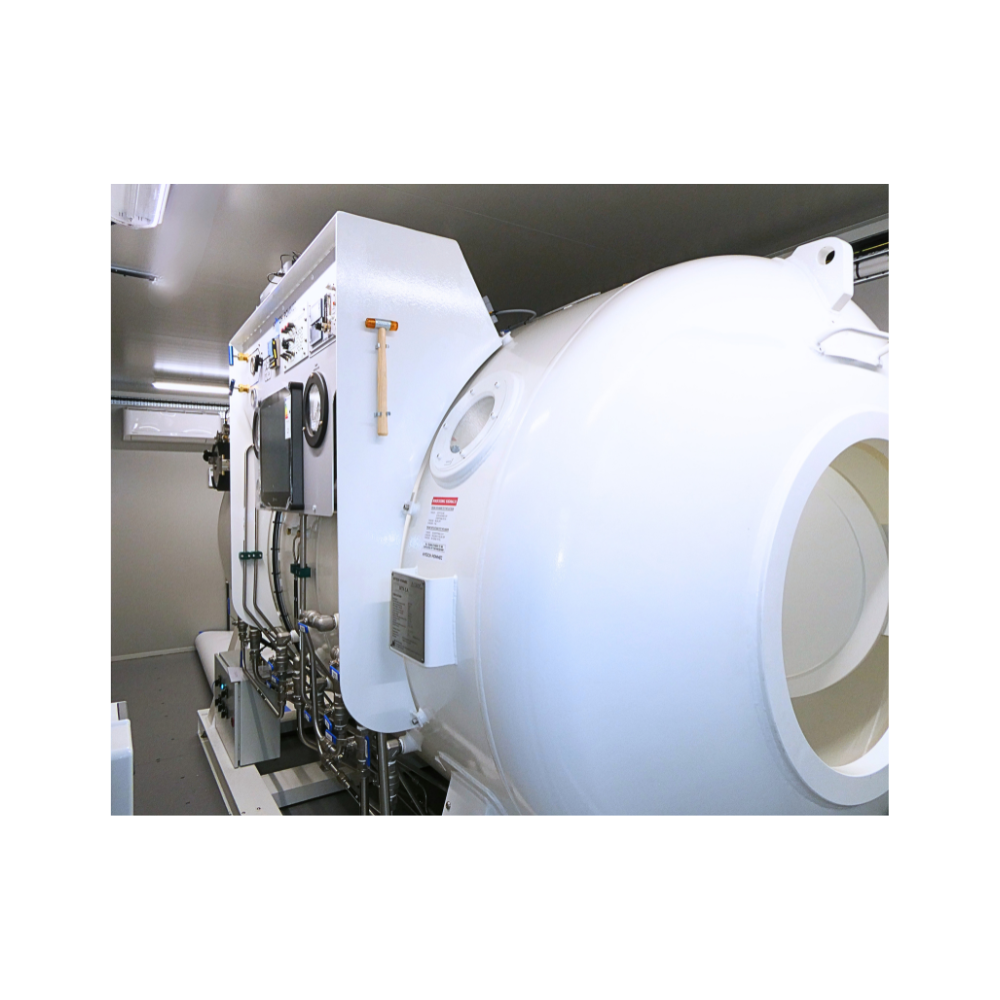

BASIC DECK DECOMPRESSION CHAMBER - 1600Ø
BASIC DECK DECOMPRESSION CHAMBER - 1600Ø - Image 2
BASIC DECK DECOMPRESSION CHAMBER - 1600Ø - Image 3

BASIC DECK DECOMPRESSION CHAMBER – 1600Ø

Category: Tags: , , , Brand:

The Hytech-Pommec Basic Deck Decompression Chamber is equipped with all essential options and systems required for safe and efficient operation. As you would expect from Hytech-Pommec, this entry-level model offers the same high standards of quality, reliability, and durability as all other products within the range.

The Basic DDC is available in several diameters (Ø1600 mm, Ø1800 mm, and Ø2000 mm). In addition, it can be equipped with a wide range of optional features, allowing the DDC to be customized to meet specific operational requirements and customer preferences.

Aantal
Add to Quote
<br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br /> <br /> <b>Warning</b>: Trying to access array offset on value of type null in <b>/home/hytechpommec/domains/hytech-pommec.nl/public_html/wp-content/themes/buro26/woocommerce/content-single-product.php</b> on line <b>66</b><br />

Questions?

If you have any questions let us know

+31 (0)85 79 24 300 sales@hytech-pommec.com

Product description

The Hytech-Pommec Basic Deck Decompression Chamber (DDC) provides a reliable and cost-effective solution for professional commercial diving operations. It combines proven engineering, durable construction, and essential life support systems in a compact design. As a result, operators benefit from safe and efficient deck decompression in offshore, inshore, and inland environments.

Every Basic DDC meets the high quality standards of the Hytech-Pommec product range. It delivers dependable performance, straightforward operation, and a long service life. Moreover, its modular design supports future upgrades and project-specific configurations.

Choose from three chamber diameters: Ø1600 mm, Ø1800 mm, or Ø2000 mm. Additionally, a wide range of optional features allows you to tailor the system to your operational requirements.

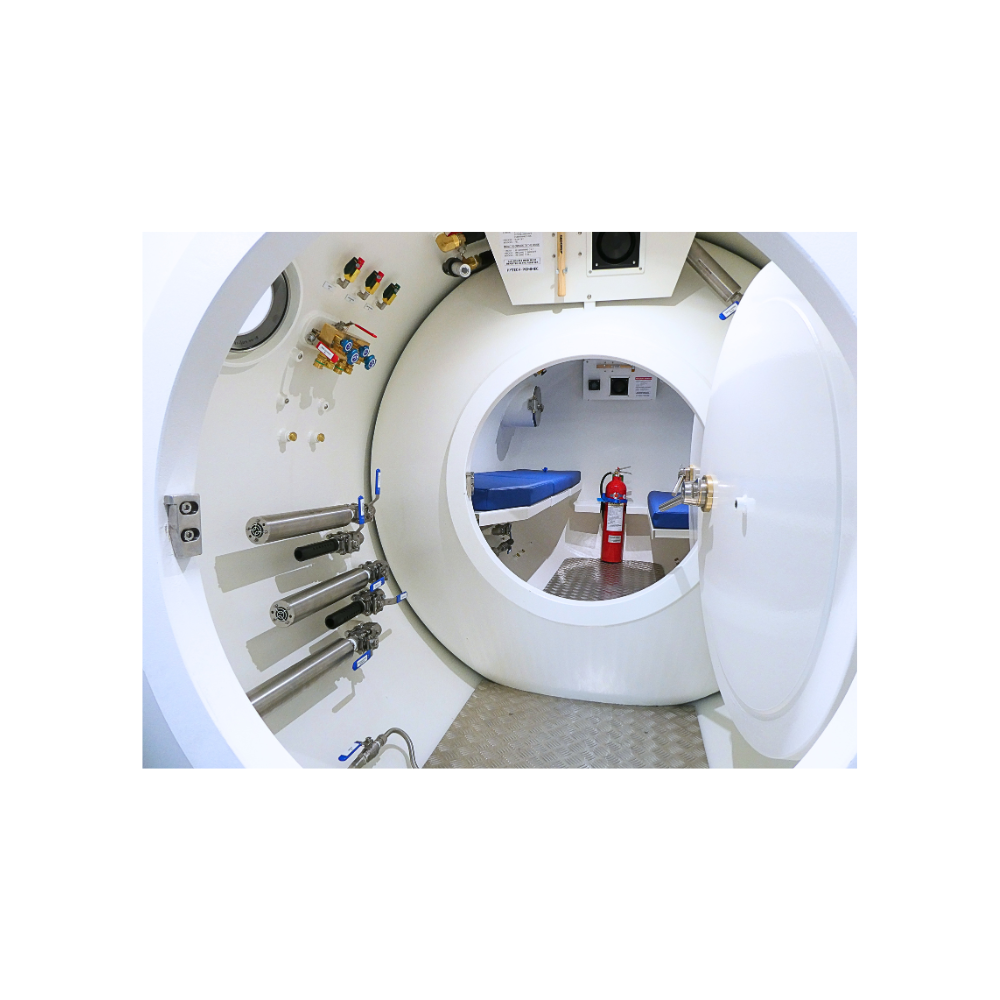

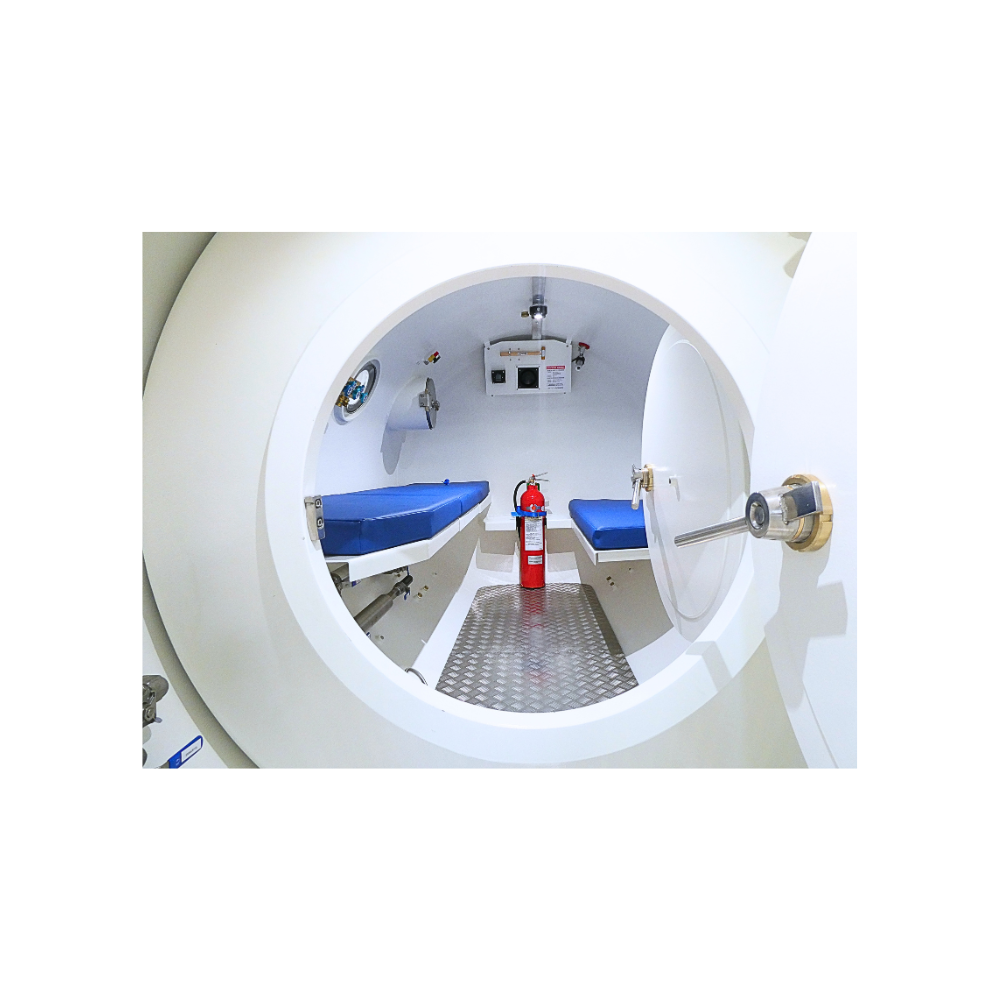

The Main Chamber includes foldable bunks, fire-retardant mattresses, and durable floor protection for comfort and practicality. The Entrance Lock features a foldable seat and a wide access door. Large viewing windows provide a clear view of both compartments throughout every operation.

Safety remains the highest priority. The chamber includes an integrated Built-In Breathing System (BIBS), a stainless steel supply lock with an interlock system, and a certified hyperbaric fire extinguisher. Furthermore, the oxygen and carbon dioxide analyser continuously monitors the chamber atmosphere. A UPS backup system keeps critical equipment operating during power interruptions.

The ergonomic control panel simplifies daily operation. Clearly arranged controls, precision gauges, digital monitoring, and integrated timers improve efficiency. Meanwhile, the communication system, internal speakers, microphones, and emergency backup communication keep operators and divers connected.

Finally, the heavy-duty skid frame allows easy transport and installation. Optional cylinder storage and spare penetrators provide additional flexibility for future expansion. Whether you need a standard configuration or a customised solution, the Hytech-Pommec Basic Deck Decompression Chamber delivers the safety, reliability, and flexibility trusted by commercial diving professionals worldwide.

Specifications

Specification Value
Maximum capacity Max. 4 occupants
MC capacity Max. 3 occupants
EL capacity Max. 1 occupant
MC configuration 2 occupants laying down
MC configuration 3 occupants in sitting position
MC configuration 2 occupants laying down + 1 attendant
Maximum operating depth 50 msw / 5.13 bar
Design pressure 5.65 bar
Hydrostatic test pressure 8.1 bar
Depth gauges Dual scale, 0.25% accuracy
Overall length ± 3,600 mm
Inside diameter ± 1,600 mm
Empty weight ± 2,700 kg standard, no options
Inner length EL ± 1,100 mm
Inner length MC ± 2,400 mm
Volume EL ± 1.9 m3
Volume MC ± 4.7 m3
Length of supply lock ± 320 mm
Diameter of supply lock ± 230 mm
Viewport free diameter ± 150 mm
Door diameter ± 700 mm
Design temperature -10 °C to +50 °C
Paint Base and top layer white RAL 9010



Features

  • Chamber Design

    • Foldable Patient Bunks – Two foldable bunks in the Main Chamber (MC) for sitting or lying down.
    • Foldable Seat – Comfortable foldable seat in the Entrance Lock (EL).
    • Fire-Retardant Mattresses – Heat- and ignition-resistant mattresses designed for oxygen-enriched environments.
    • Viewing Windows – Two 150 mm viewports provide clear visibility into the Main Chamber and Entrance Lock.
    • Double-Hinged Access Doors – 700 mm doors with ergonomic handles for safe and easy access.
    • Floor Protection – Durable floor cover plates in both compartments.
    • Lifting Eyes – Integrated lifting points for safe transport and installation.
    • Skid-Mounted Frame – Heavy-duty foundation frame with optional storage for up to ten 50-litre high-pressure air cylinders.

    Safety & Life Support

    • Integrated Supply Lock – Stainless steel supply lock with one-hand operation and interlock system for safe equipment transfer.
    • Built-in BIBS – Breathing system with overboard dump and multiple mask connection points in both compartments.
    • Hyperbaric Fire Extinguisher – Certified fire extinguisher installed in the Main Chamber for enhanced safety.
    • Oxygen & CO₂ Analyser – Continuously monitors chamber atmosphere with digital displays and visual and audible alarms for oxygen and carbon dioxide levels.
    • UPS Backup System – Battery backup keeps critical life-support equipment, communication, lighting, and gas monitoring operational for 2–3 hours during power loss.

    Communication & Monitoring

    • Chamber Communication System – Reliable two-way communication between the control panel and both chamber compartments, with optional headset support.
    • Internal Speaker & Microphone – Hands-free communication in both the Main Chamber and Entrance Lock.
    • Secondary Communication – Emergency hammer communication system for use if the primary system is unavailable.
    • Digital Caisson Indicator – Displays Main Chamber pressure for operational monitoring.
    • Triple Countdown Timer – Integrated digital timer with three independent countdown functions and audible alerts.

    Control & Flexibility

    • Operator Control Panel – Ergonomic control panel with clearly arranged controls, pressure gauges, and precision depth gauges for safe chamber operation.
    • Spare Penetrators – Additional penetrators simplify future upgrades and installation of optional equipment.
