Specifications
| Specification | Detail |
|---|---|
| Length | 40 meter |
| Working pressure | 15 bar |
| Nominal bore | 3/8 inch |
| Weight | Approx. 9.5 kg |
| Quick connectors | Walther-Prazision 007 male / Walther-Prazision 007 female |
| Color | Blue |

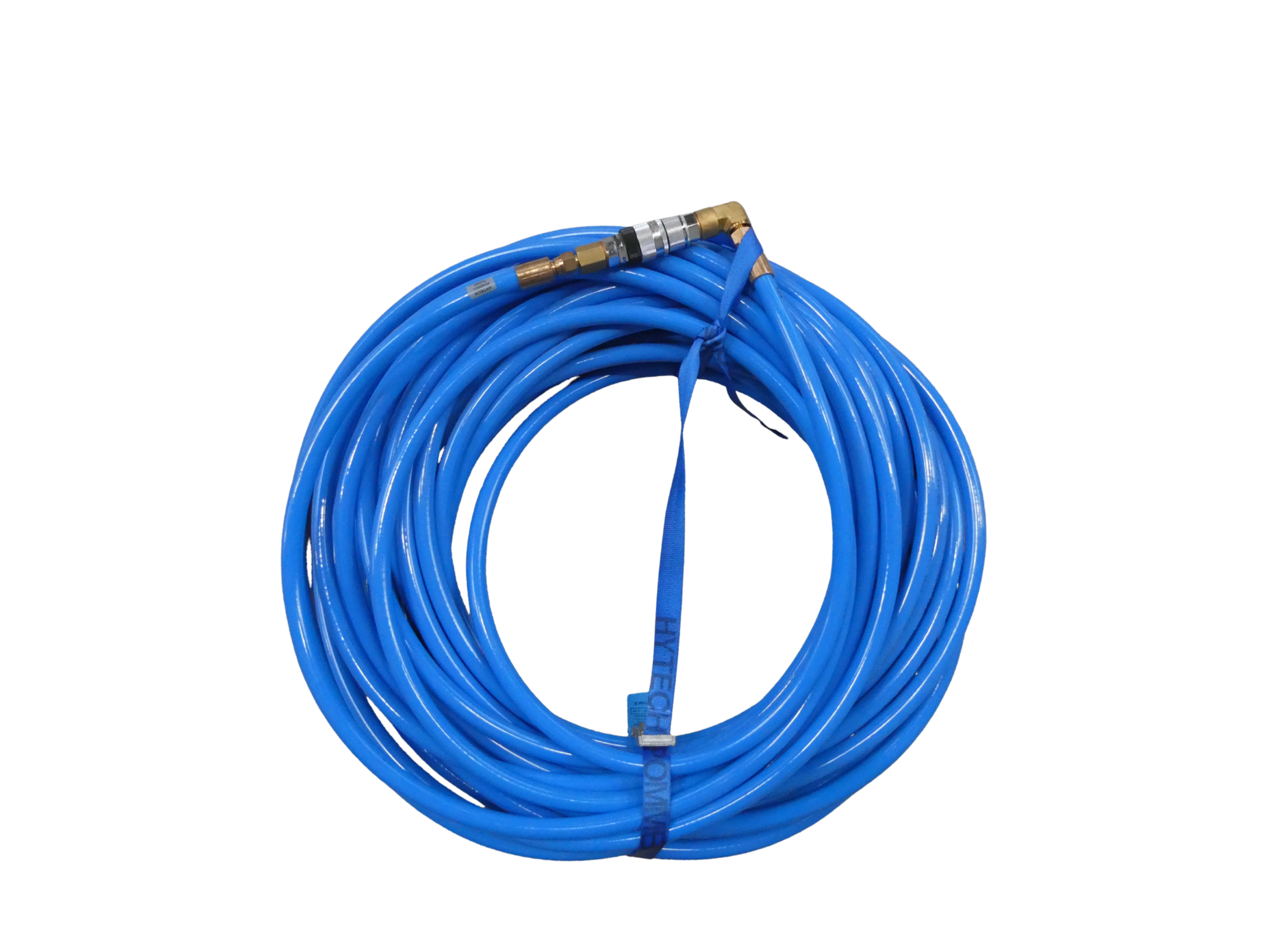

Single line FBL06 40mtr for BA box 3.80.3316
Questions?
If you have any questions let us know
Product description
The FBL06 40 m single line is designed for use with the Life Support BA Panel during inert entry operations. It functions as the interconnecting line between Panel A and Panel B.
Walther-Prazision Quick Connections
The line includes a Walther-Prazision 007 male quick connector and a Walther-Prazision 007 female quick connector. It has a working pressure of 15 bar and a nominal bore of 3/8 inch.
The 40 m line weighs approximately 9.5 kg and is supplied in blue.
Features
- 40 m FBL06 single line
- Designed for use with the Life Support BA Panel
- Interconnects Panel A and Panel B
- Suitable for inert entry operations
- Walther-Prazision 007 male quick connector
- Walther-Prazision 007 female quick connector
- Blue
